Design

Table 1. End-ring - Design – User inputs

1	Selector to choose the same end-ring topologies on both sides (Yes or No).

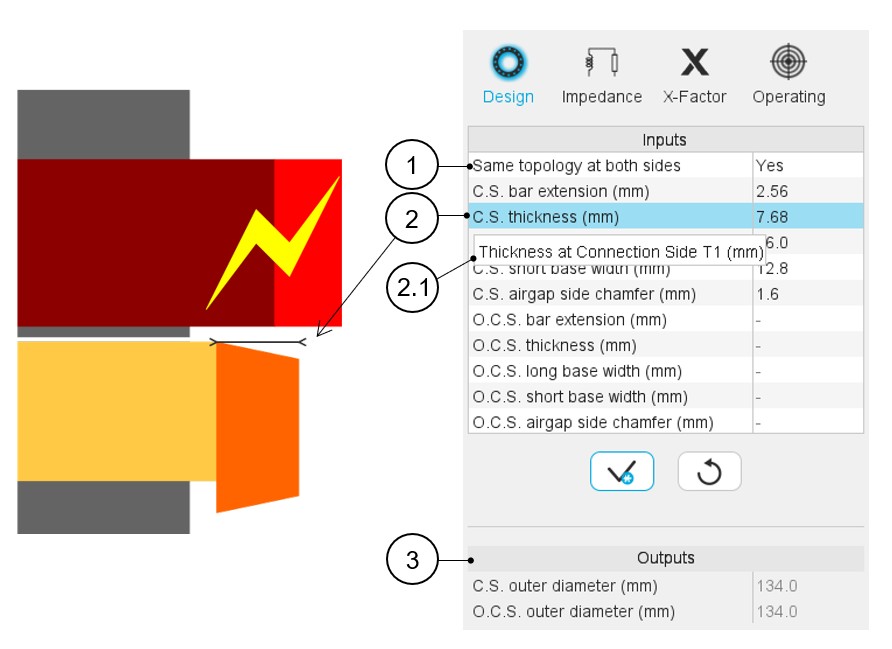

2	Definition of each end-ring geometrical input, with the corresponding arrow on the axial view of the machine.
2.1	Selecting a parameter displays the corresponding tooltip, which completes information about the parameter.
3	Output parameters are in read only mode. These parameters are computed from user inputs defined above. As for the user inputs, when clicking on the output parameter, the corresponding arrow is displayed on the view to better understand its meaning.

1

Selector to choose the same end-ring topologies on both sides (Yes or No).

2

Definition of each end-ring geometrical input, with the corresponding arrow on the axial view of the machine.

2.1

Selecting a parameter displays the corresponding tooltip, which completes information about the parameter.

3

Output parameters are in read only mode. These parameters are computed from user inputs defined above.

As for the user inputs, when clicking on the output parameter, the corresponding arrow is displayed on the view to better understand its meaning.
