Squirrel cage

The rotor of an induction machine with a squirrel cage is composed of a magnetic circuit with a squirrel cage included inside.

The squirrel cage is designed with bars that are short-circuited by end-rings on both sides - Connection Side (C.S.) and Opposite Connection Side (O.C.S.).

Bars and end-rings are described in their own dedicated section.

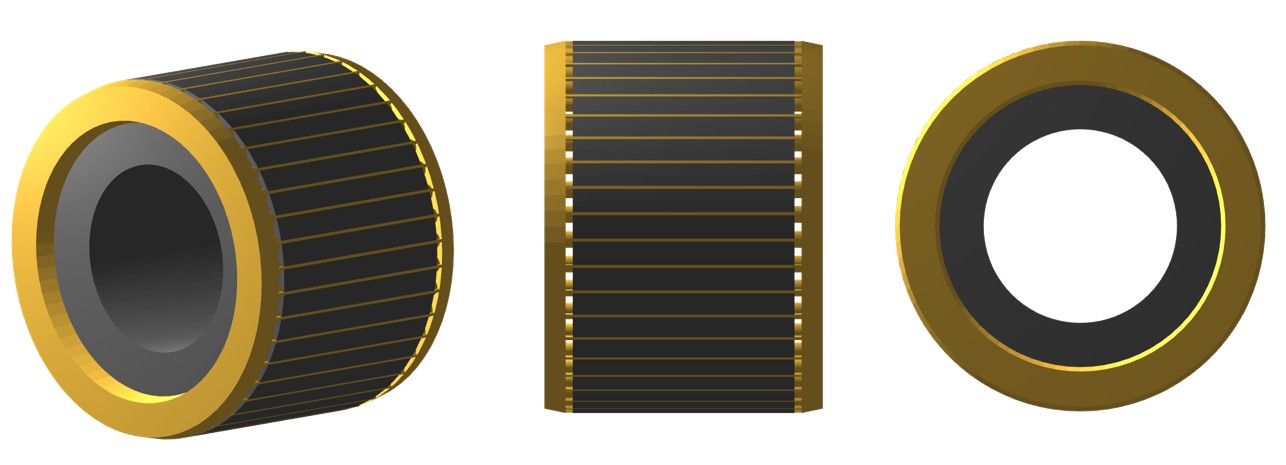

Figure 1. Induction machine with squirrel cage – Rotor – Magnetic circuit and squirrel cage

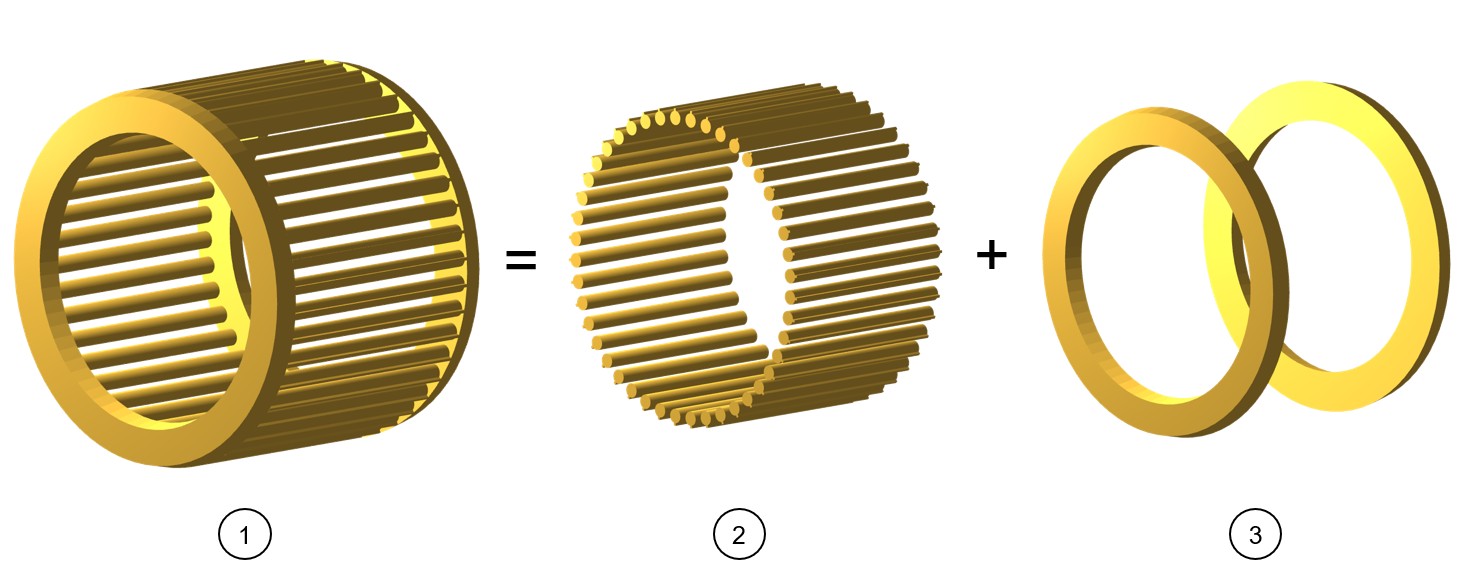

Figure 2. Squirrel cage of an induction machine - Squirrel cage (1) = Bars (2) + End-rings (3)
