Specification

Overview

In Motor Factory – Design area, the environment “Specification” allows to give the general information that describes how the machine will integrate itself in its environment.

One section is available: Topology.

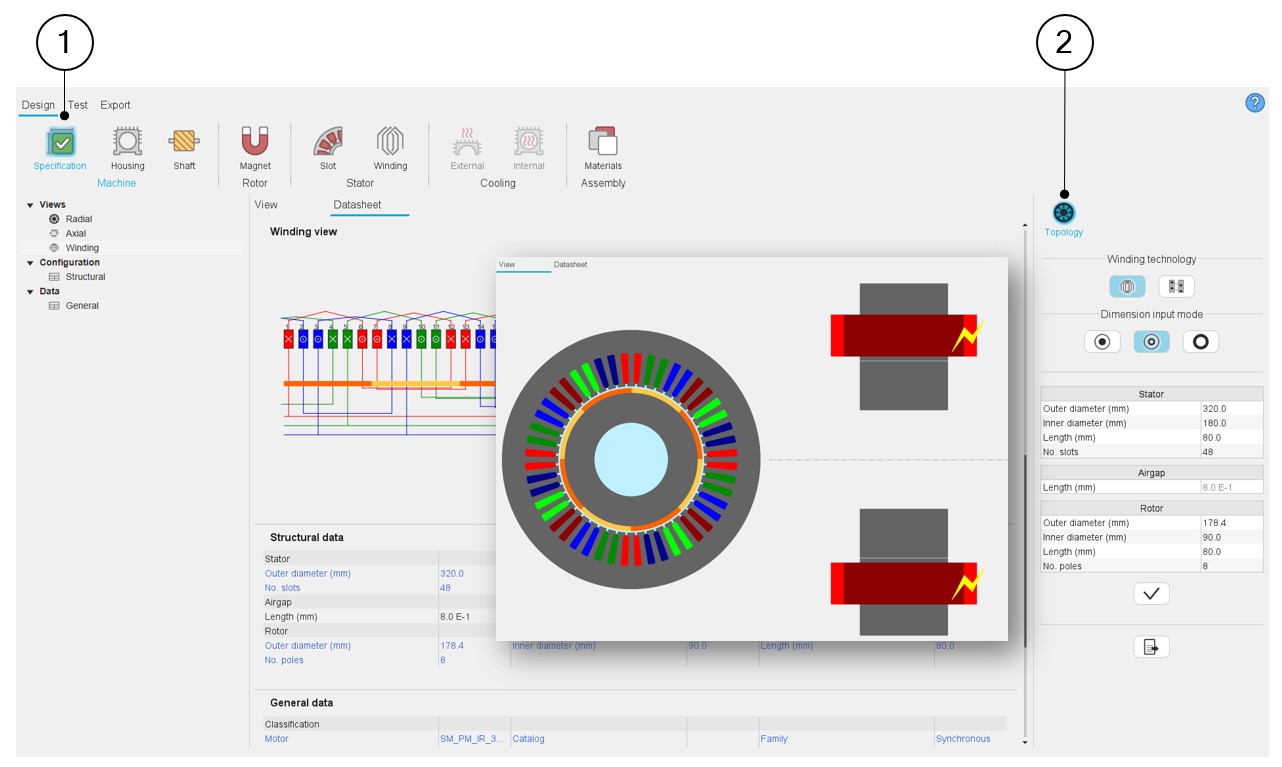

Table 1. Motor Factory – Design area – Specification data

1	Selection of the Machine subset: Specification panel (Click on the icon Specification)
2	User inputs – Case of the synchronous machine with permanent magnets / Definition of the topology
