Bar

Overview

In the Motor Factory – Design area, the environment “Bar” allows to design the shape and dimensions of the machine bars.

For both Inner Rotor machines and Outer Rotor machines, two sections are available: Design and Skew.

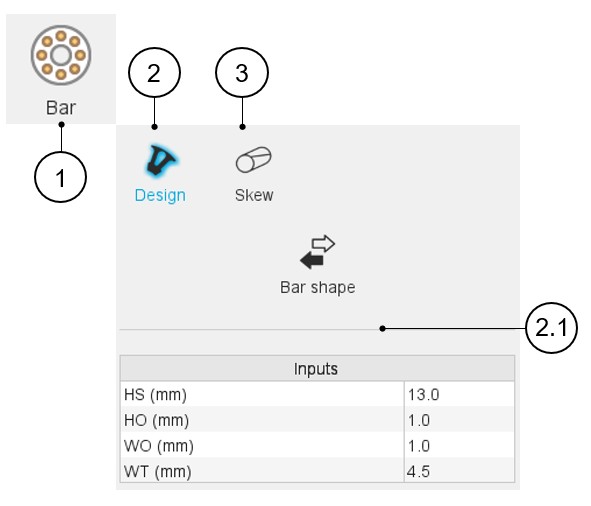

Table 1. Bar design area (example for the inner rotor topology machine)

1	Selection of the Bar panel (Click on the icon Bar) Several sections allow defining all characteristics that deal with the Bar: Design, and Skew.
2	Access to the section dedicated to the design of the slot. Note: By default, the section Design is selected.
2.1	Selection of the shape and settings of the user inputs dedicated to the design of the bar.
3	The Skew tab gives the tools to define the slot skew topology.
