Skew

Type of skew

The design of the bar can be considered with or without skewing. Hence, two solutions are proposed:
  • None: The bar is not skewed.
  • Continuous: The bar is designed with continuous skewing.

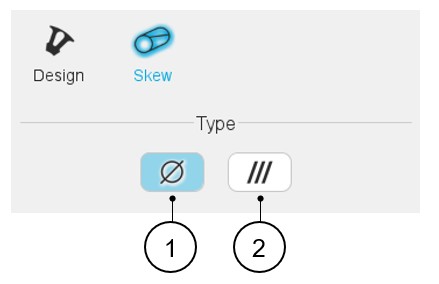

Table 1. Bar – Skew - Design area - Skew type available


1 Default setting: skew type is « None ». The bar is not skewed.
2 Button to select a skewed type of bar.
Note: The user can add a skew angle on the rotor or on the stator. If a skew is already defined in the rotor when setting a skew on the stator, the rotor skewing will be automatically reset to “None” and vice-versa.

Continuous skew

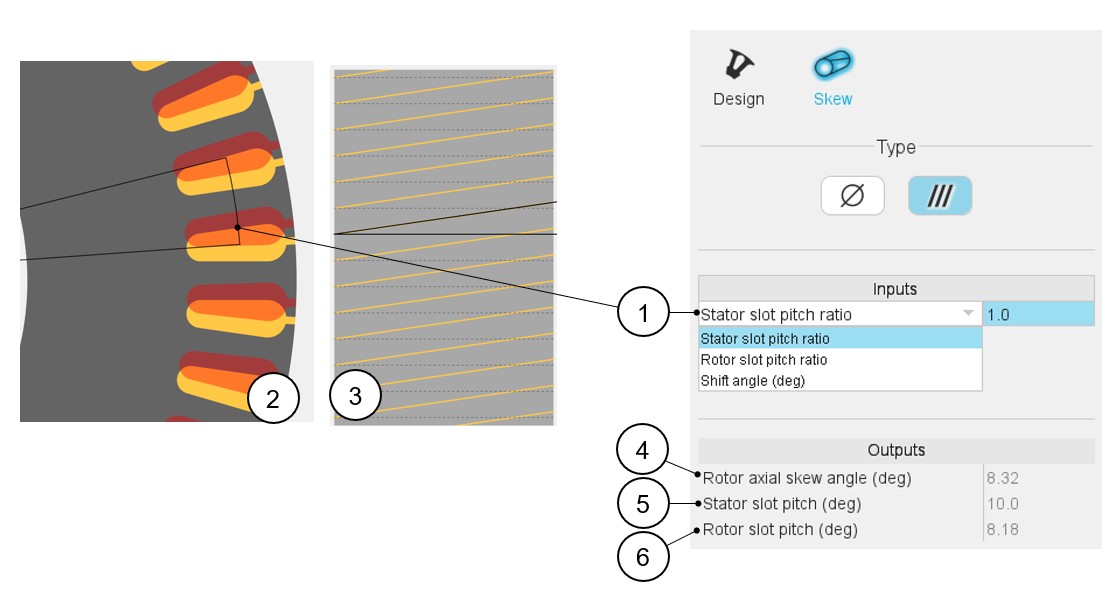

Table 2. How to set a skew angle?


1 Choose the definition mode of the skew: Three choices are possible:
  • Stator slot pitch ratio
  • Rotor pole pitch ratio
  • Shift angle
Note: whatever the definition mode is, the resulting shift angle must be an element of [-180.0, 180.0] (deg).
2 Visualization of the chosen skew angle on the machine radial view
3 Visualization of the equivalent rotor axial skew angle on the machine-developed view
4 Equivalent rotor axial skew angle (read only)
5 Equivalent stator slot pitch (read only)
6 Equivalent rotor slot pitch (read only)
