New

How to create a new part?

The creation of a new part is possible only in a user’s library. If you select a reference library, the icon "New" is disabled.

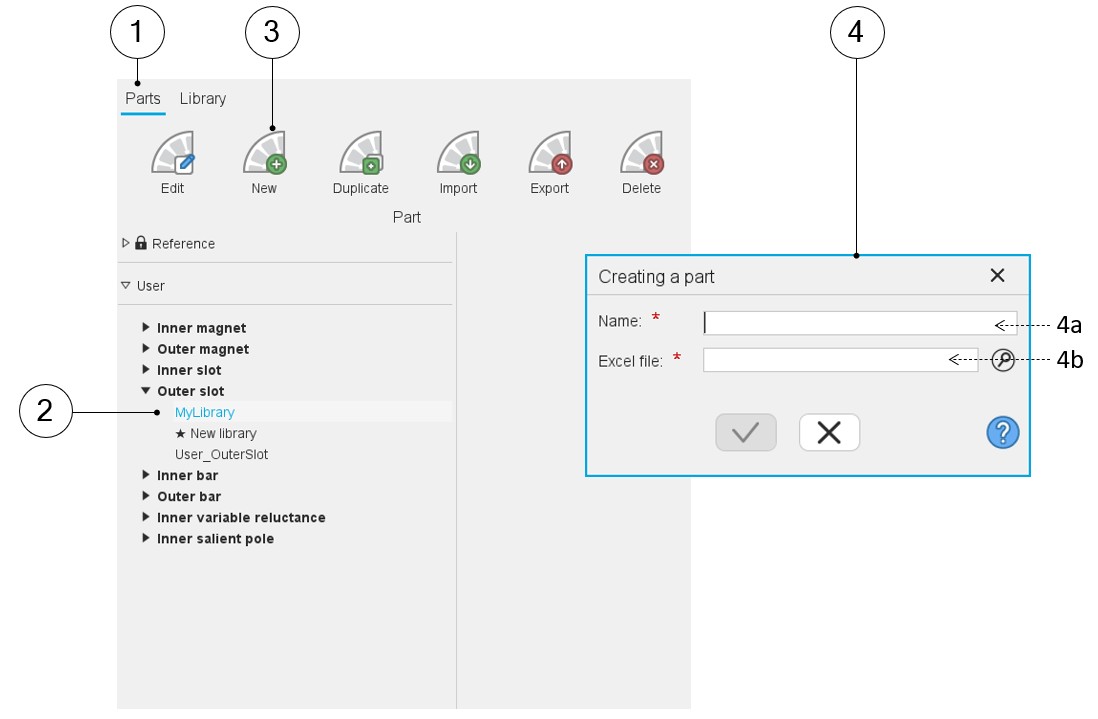

Table 1. How to create a new motor from Motor Catalog?


1 Selection of the parts area of the Part Library application.
2 Selection of a user’s library in which the new part will be stored.

The selected library must correspond to the type of part to be created.
3 Click on the icon “New”.
4 A dialog box is automatically opened to allow the process of creation.
4a A name must be given to the new part. It will be stored in the selected library.

Then, the Part Factory environment is opened to design the new motor.

Note: A default new name is proposed. One must choose a name that is not already used in the Part Library.
4b Select the Excel file in which all the parameters of the part to be created are defined. Refer to the Part Factory application.
Note: The new part previously created is stored in the corresponding library.
