Duplicate
How to duplicate a part?
The duplication of a part is possible only in a user’s library. If you select a
reference library, the icon "Duplicate" is disabled.
Note: If
the selected library is empty, the icon "Duplicate" is disabled.
 |
|
|---|---|

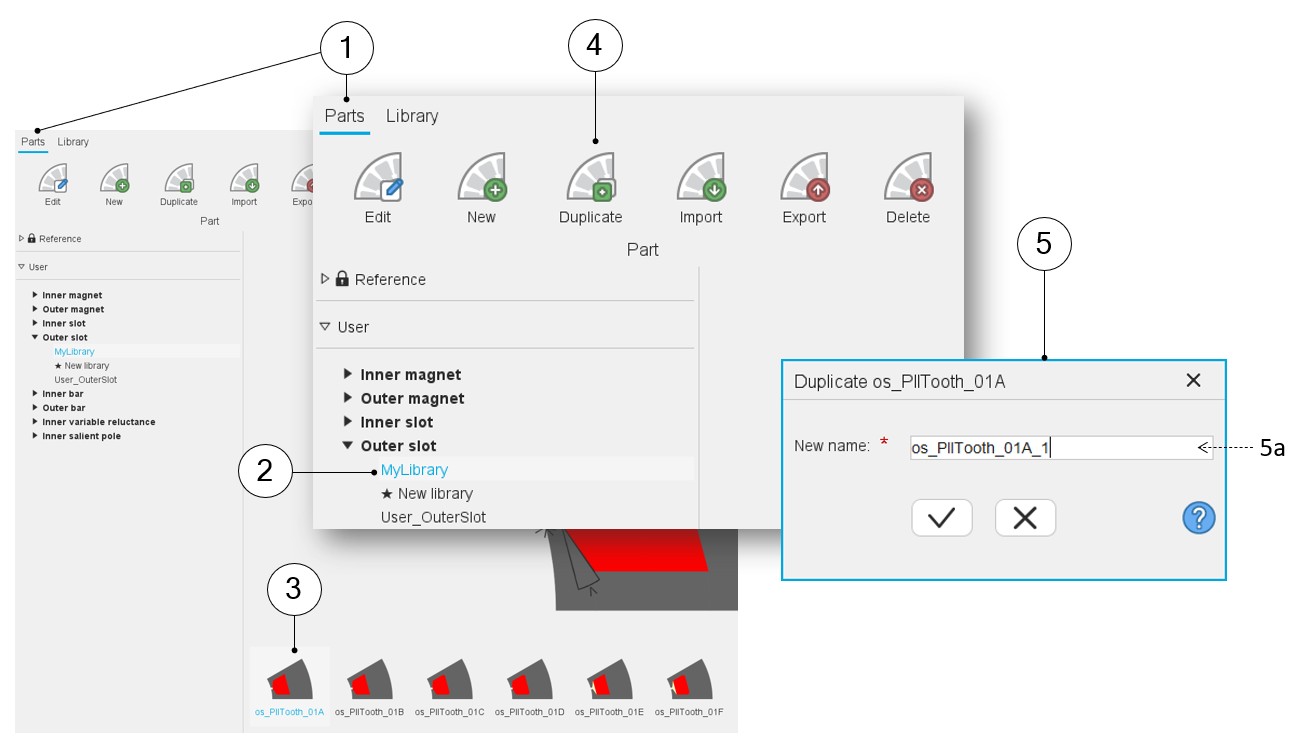

| 1 | Selection of the parts area of the Part Library application. |
| 2 | Selection of a user’s library in which the part to be duplicated is stored. |
| 3 | Selection of the part to duplicate. |
| 4 | Click on the icon “Duplicate”. |
| 5 | A dialog box is automatically opened to allow the process of duplication. |
| 5a | Give a name to the new part. Note: A default
new name is proposed. One must choose a name that is not already
used in the Part Library. |
Note: The new part previously created (by duplication) is stored
in the corresponding library.
