Tunnels

Tunnel databases have a special layout and can be included.

Generation

Tunnel databases can be generated with the standalone tool TuMan. This component is included in the WinProp software package.

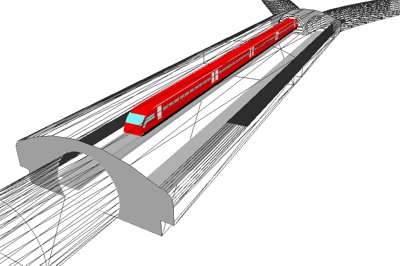

Figure 1. A tunnel database with a train in the 3D view.
