Introduction to WinProp
WinProp is a complete suite of tools in the domain of wireless propagation and radio network planning. With applications ranging from satellite to terrestrial, from rural via urban to indoor radio links, WinProp’s innovative wave propagation models combine accuracy with short computation time.
Typical Workflow in WinProp
View the typical workflows when working with propagation simulations in specific scenarios, how to add a network planning to a propagation simulation, include a receiver pattern, set up a time-variant scenario, include multiple-input multiple-output (MIMO) at both the base station and the mobile station, connectivity analysis of sensor networks and optimization.
WallMan
The WallMan component offers a convenient facility to generate and edit vector building databases.
TuMan
The TuMan tool enables you to generate and modify tunnel scenarios.
AMan
Use AMan to generate, edit and analyze a single antenna. Superimpose multiple antennas radiating similar signals to determine the actual antenna pattern while taking into consideration the local environment.
ProMan
The ProMan component includes wave propagation models for different scenarios and network planning simulators for various air interfaces.
- Introduction to Propagation Manager (ProMan)
  Predict path loss between transmitter and receiver with ProMan. Perform network planning including the wireless standards (the air interfaces) and including multiple transmitters/receivers (multiple base stations).
  - User Interface
    The ProMan (Propagation) software package is designed to predict path loss accurately between transmitter and receiver. The ProMan (network) software offers network planning modules.
  - Run From Command Line
    ProMan can be started with additional arguments passed in the command line to load and execute existing projects automatically.
  - WinProp Command Line Interface
    The WinProp command line interface (WinPropCLI) executable enables you to run WinProp projects in batch mode without launching the graphical user interface (GUI). It is available on both Microsoft Windows and Linux. Internally, the WinPropCLI executable calls the WinProp API. The WinPropCLI can be used within queuing systems such as Altair PBS, Torque, LSF, GridEngine and more.
  - Global Settings
    Global settings are settings that are not relevant to a specific project or database.
  - Antenna Patterns
    The correct format for antenna patterns is required to ensure accurate propagation modeling.
  - Map Data
  - Sites and Transmitters
    A site represents a base transceiver station (BTS) that allows wireless communication between user equipment and a network.
  - Components
    Model complex radio networks in indoor environments using predefined components from a component database.
  - Import and Export
  - Component Database
    WinProp features a component database with manufacturer information. Components such as combiners, splitters, amplifiers can be added for modeling of the propagation environment.
- Propagation Projects
- Network and Base Station Planning Projects
- MIMO Analysis Through Post-Processing
- Results
- Addenda
- Parallel Processing
  Use parallel MPI processes to solve a problem efficiently using the standard ray tracing model (SRT).
- Default Shortcut Keys
  View the default shortcut keys available for ProMan for faster and easier operation.
Methods
WinProp includes empirical and semi-empirical models (calibration with measurements possible), rigorous 3D ray-tracing models as well as the unique dominant path model (DPM).
Main Applications
In WinProp various air interfaces and applications are pre-defined: broadcasting, cellular, wireless access, WiFi, sensor networks, ICNIRP and EM compliance.
WinProp Utilities
The WinProp utilities consist of the Launcher utility and the Updater.
Appendix
Reference information is provided in the appendix.

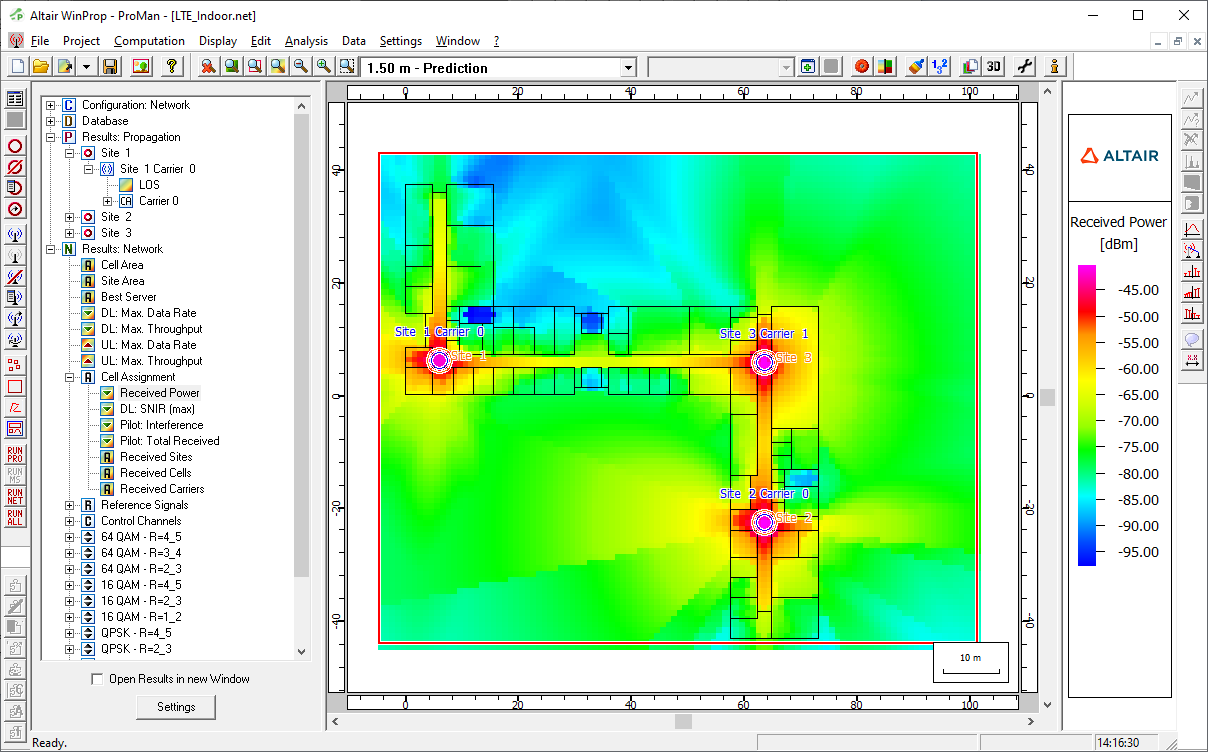

Introduction to Propagation Manager (ProMan)

Predict path loss between transmitter and receiver with ProMan. Perform network planning including the wireless standards (the air interfaces) and including multiple transmitters/receivers (multiple base stations).

The ProMan software package is designed to predict the path loss accurately between transmitter and receiver including all important parameters of the mobile radio channel. Propagation models for rural, urban, and indoor scenarios are available as well as the unique CNP mode for hybrid scenarios. Terrestrial, as well as satellite transmitters, can be considered.

The ProMan software also offers network planning modules for 2G/2.5G, 3G/B3G, WLAN, WiMAX networks and more. Static network planning modules, as well as dynamic network simulators, are included. Besides these cellular network planning features, ProMan also supports the planning of broadcasting networks (terrestrial and satellite).
