Folds

Mesh > Verify > Folds

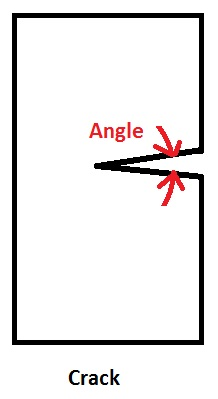

Cracks

This option is used to identify crack elements present in the given body.

Angle

Crack elements lesser than this angle will be highlighted.

Within face

This option will highlight the cracks present within the face only.

Include point crack

By default cracks along the Element Edge will be found. This toggle helps to also find cracks at a point (node).

Group connected elements

This option will group the failed elements based on connectivity and create groups.

Auto Clean Cracks

This option is used to cleanup predefined crack patterns.

Example

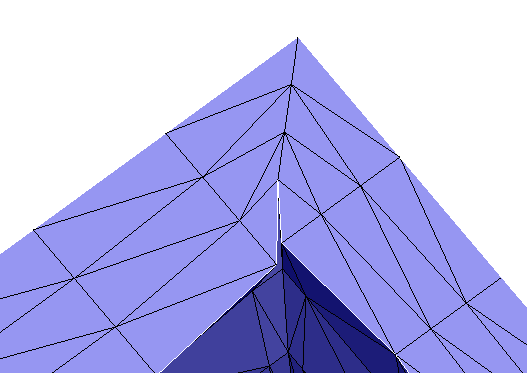

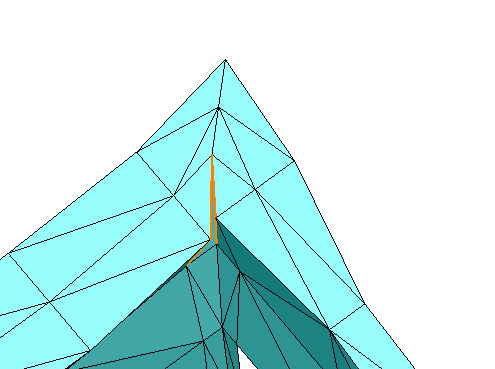

Cracks have been displayed for an angle of 20.

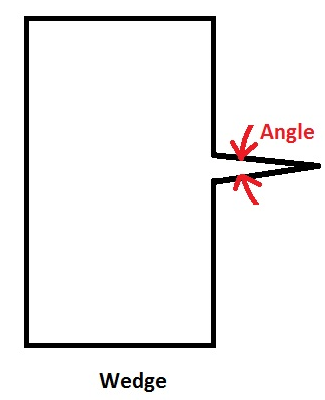

Wedges

This option is used to identify wedge elements present in the given body.

Angle

Wedge elements lesser than this angle will be highlighted.

Within face

This option will highlight the wedges present within the face only.

Include point wedge

By default wedges along the element edge will be found. This toggle helps to also find wedges at a point (node).

Group connected elements

This option will group the failed elements based on connectivity and create groups.

Example

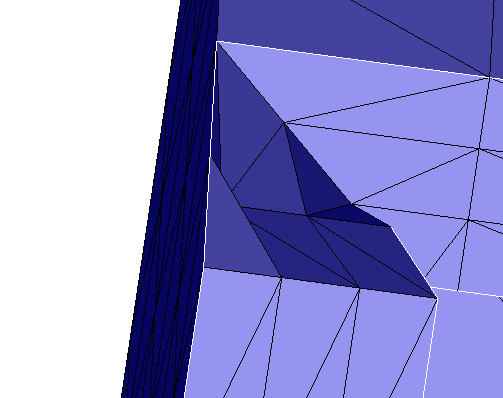

Wedges have been displayed for an angle of 20.
