Identify Leaks

Mesh > Verify > Identify Leaks

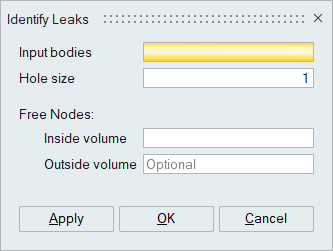

Dialog Box

Leaks in both CAD and FE models can be detected using this tool.

Example 1

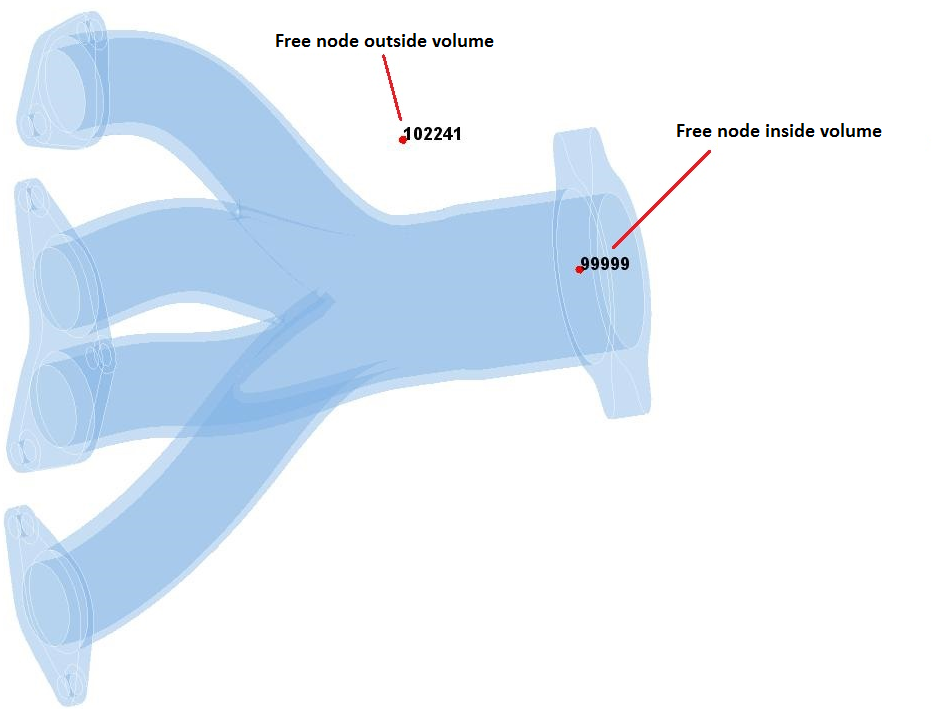

Input

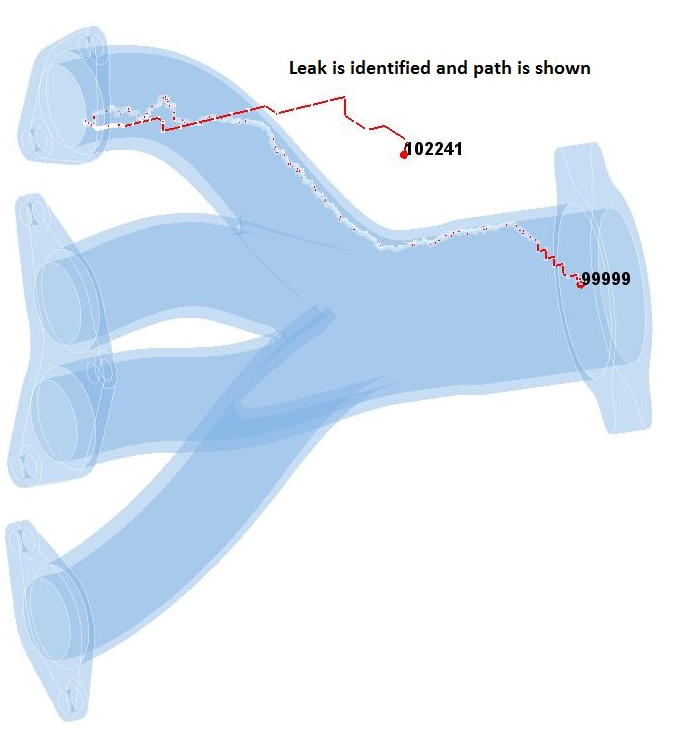

Output

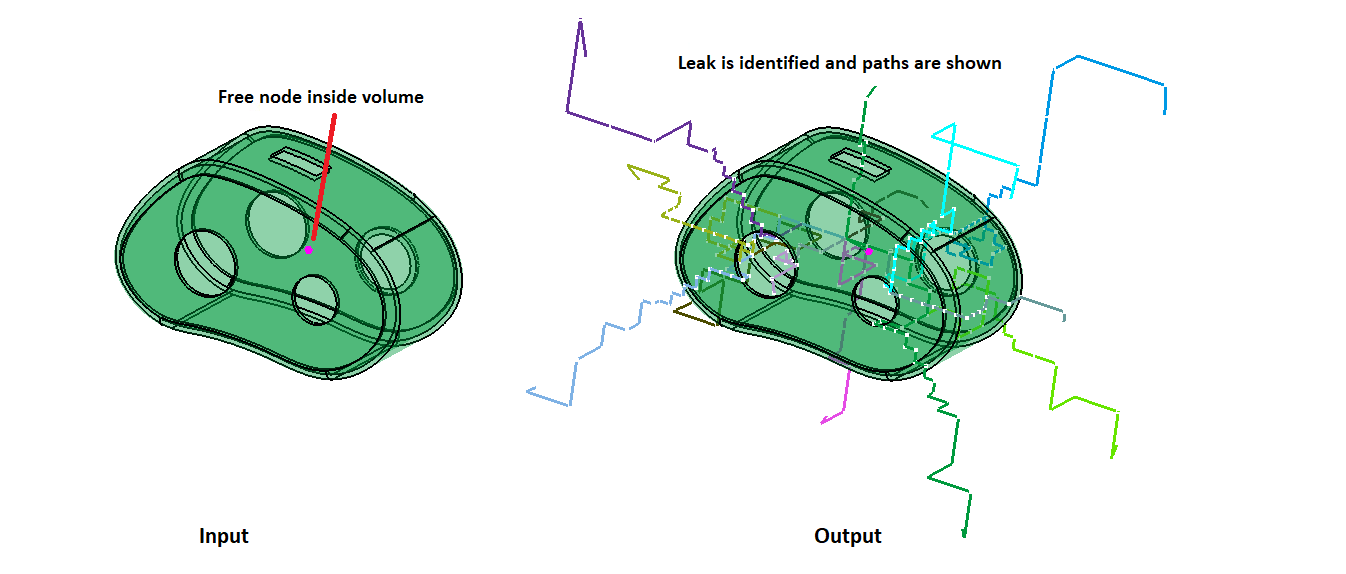

Example 2

Selecting only the "Free node inside volume" automatically assumes the outer nodes from the bounding box of the selected bodies and creates the leak paths.

Note:
  1. The distance from the surface to the selected nodes has to be at least twice the hole size.

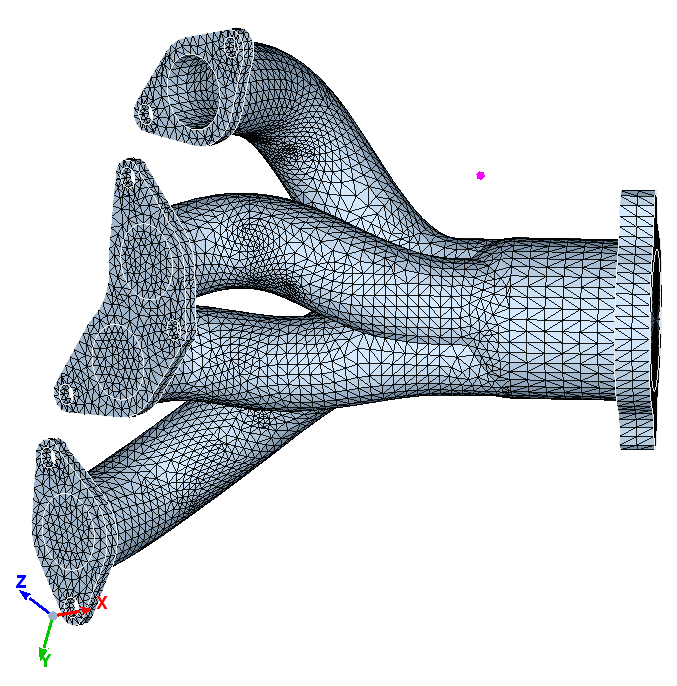

  2. For models with small thinkness as shown below if the hole size(for which the leak has be to found) is greater than the thickness of the model,then use hole size four times smaller than the thickness to get appropriate results.
