Split Face
Dialog Box
By feature
This is used to extract the planar and cylindrical faces using the circles present in the selected bodies.

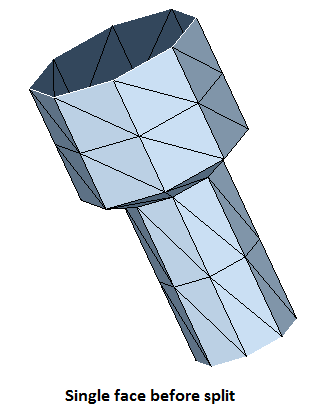

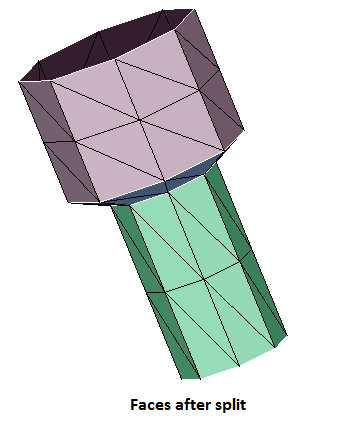

- Example

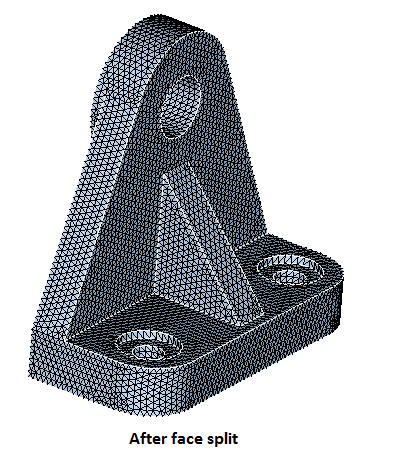

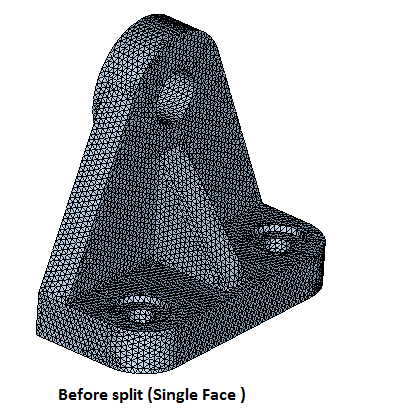

By angle
This is used to break faces in the selected bodies or faces using the specified feature angle. Elements will be grouped based on that angle and a face for the grouped elements will be created.
- Create floating edges for open loop
Split face By angle option create edges based on the angle between adjacent elements. The created edge can form a closed loop or open loop for the specified angle. By default, only closed loop edges will be retained. By turning on this toggle, floating edges can also be retained.

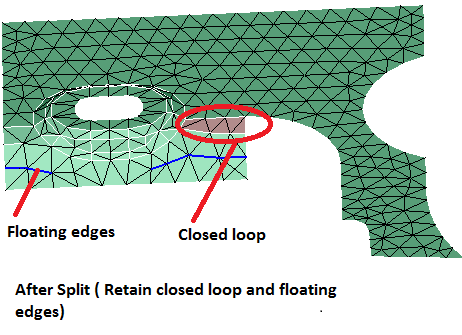

- Example 1

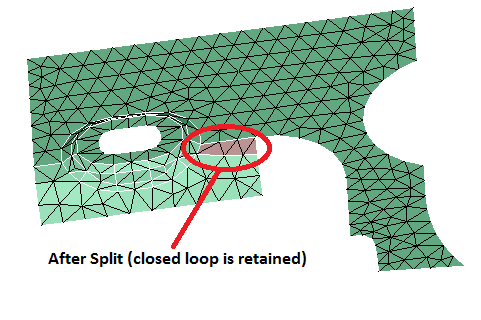

- Example 2 (Create floating edges for open loop toggle off)
