Transfer Loads

Mesh > Modify > Transfer Loads

Description

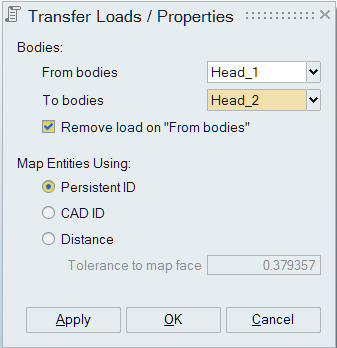

This tool is used to transfer loads and properties from one model to another model. Loads can be mapped from one body to the other body based on Persistent Id or CAD Id or distance.

  1. "Persistent ID"/"Cad ID" option will identify the support entities for LBCs (Face/Edge/Vertex) from "From Bodies" to "To Bodies" based on the corresponding IDs.
  2. "Distance" option will create/identify only the mapping faces in "To Bodies". The mapping face is created/identified by collecting the elements from the "To Bodies" which are closer to a support face in "From Bodies" based on the value "Tolerance to map face".

List of LBC's using "Persistent ID"/"Cad ID" option

List of LBC's and automation objects which will get transfered using the option "Persistent ID"/"Cad ID" are,

  1. Pressure
  2. Force
  3. Constraint
  4. MPC
  5. Contact
  6. Sets
  7. Rigid Bar
  8. Spring
  9. Initial Temperature
  10. Heat Source
  11. Convection
  12. Flux
  13. Velocity
  14. Bolt(Head/Thread)
  15. Bar Pretension
  16. Bearing Pressure

List of LBC's using "Distance" option

List of LBC's which will get transfered using the option "Distance" are,

  1. Pressure
  2. Constraint
  3. Contact
  4. Sets
  5. Convection
  6. Flux
