Imprint Face on Face

Geometry > Face > Imprint > Face on Face

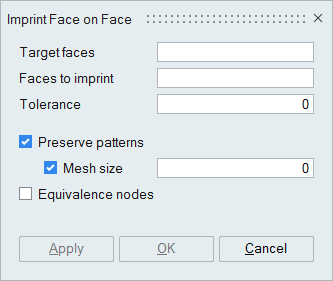

Dialog Box

This is used to imprint one or more faces(Faces to imprint) on to another face(Target face). The mesh pattern of the reference face will be recovered on the target face. This option also support CAD Parasolid faces for a model imported with save geometry in database option enabled.

Tolerance
Tolerance will be calculated automatically based on the average element size of the target faces. However, the user can input the desired value.
Preserve Patterns
When this option is turned on, the mesh pattern (Matching Elements) of the Reference Face is copied on to the Target face.
Mesh Size
This option is used to remesh the affected adjacent faces with the specified mesh size.
Equivalence Nodes
This option is used to equivalence the nodes between the Reference face and Target face.

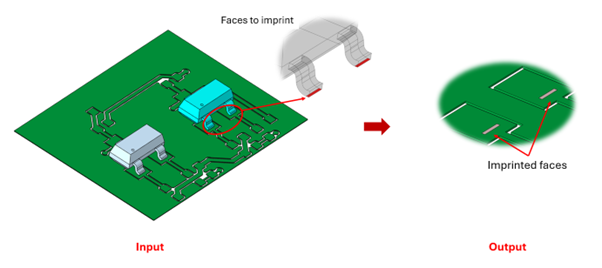

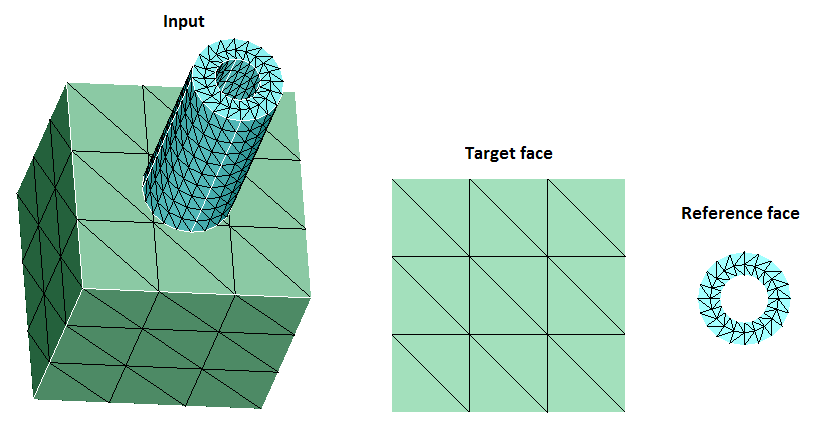

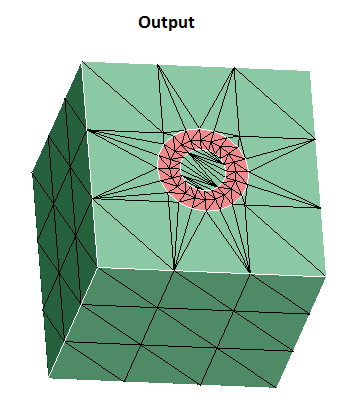

Example

CAD – Parasolid
