Stress Test

After saving the part, by clicking the Stress Test button, users can perform a stress test by varying input parameters.

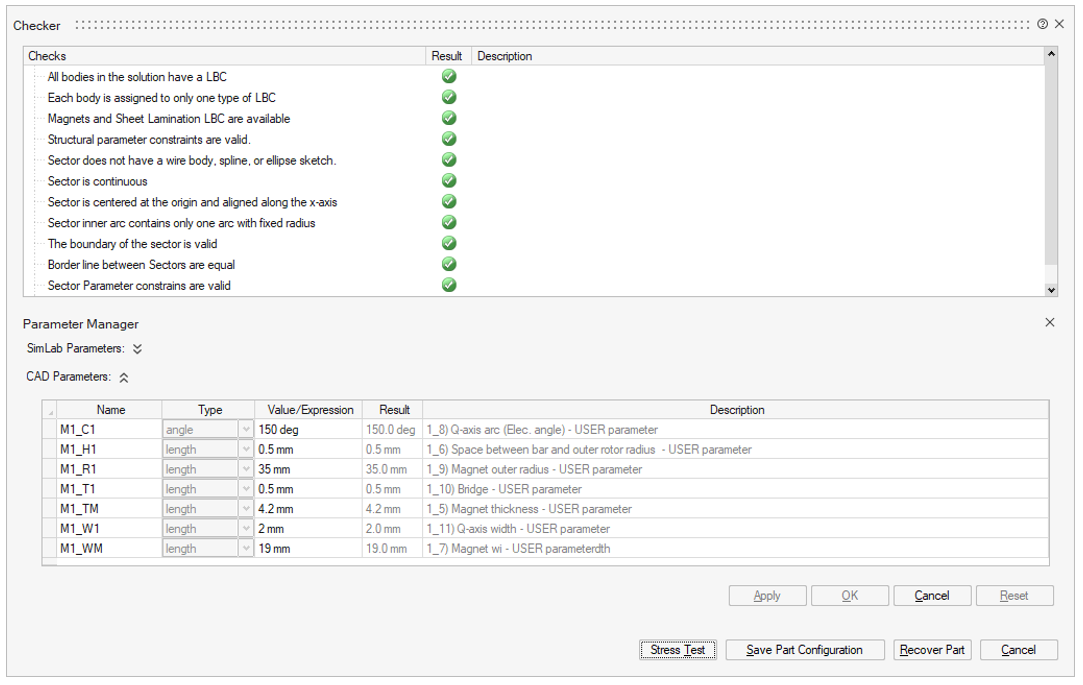

A dedicated panel displaying only input parameters will appear, allowing users to modify their values and observe the part's behavior.

This stress step is crucial for parametric studies, enabling users to understand the permissible value ranges of each input parameter and their impact on the design.

Note: If users neglect to assign parameter roles in previous steps, the parameter list will appear blank, and the part will be treated as non-parameterized. Users must return to the Parameter Role step to assign at least one input.

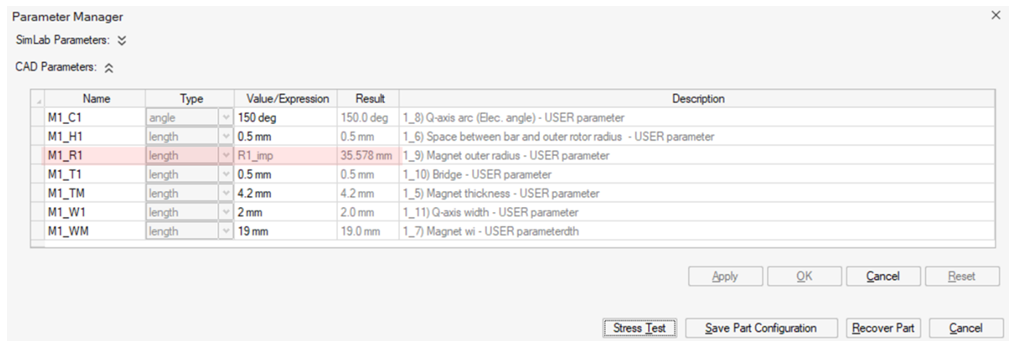

Note: If an input parameter is defined by a formula, its value field will be non-editable. Users need to return to the Sketch Environment to replace the formula with a numerical value. See the example below where M1_R1 value is expressed by a formula, and it is not possible to change its value.

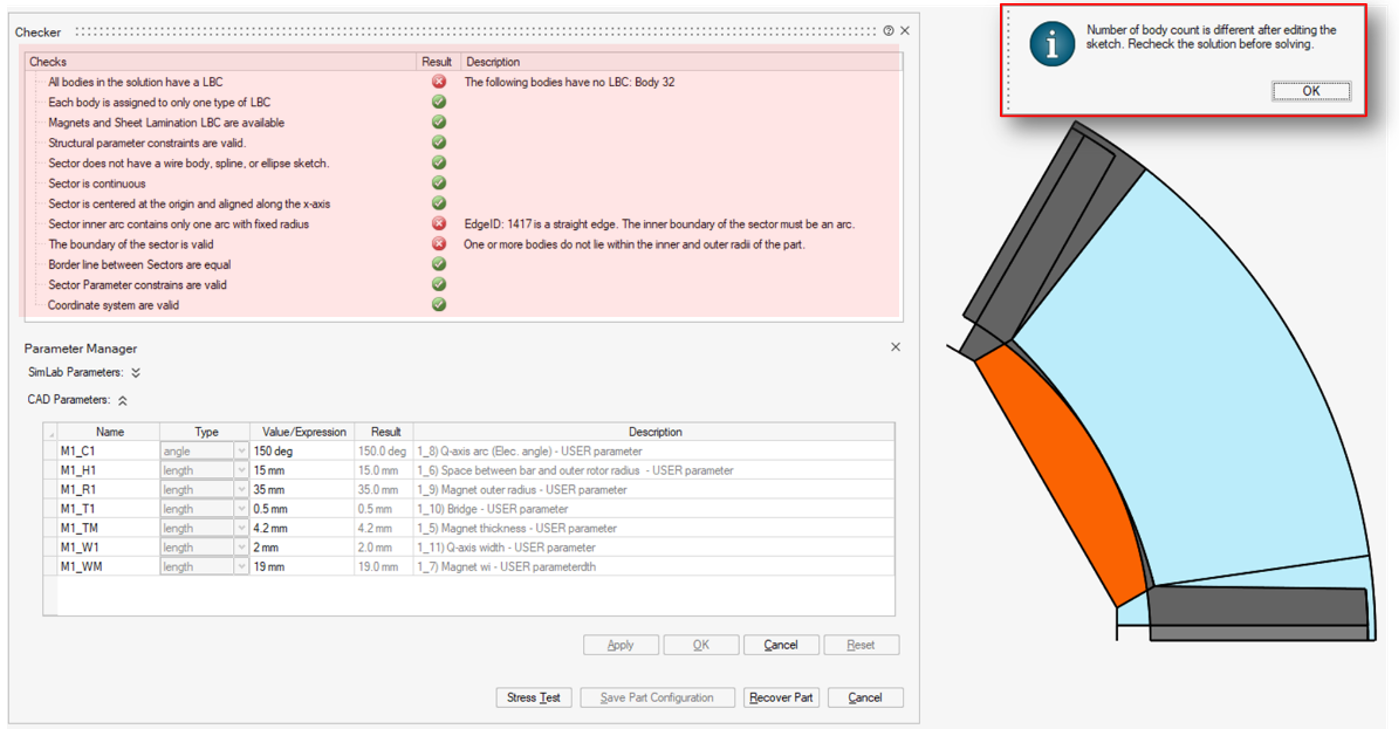

If a parameter value results in an invalid part configuration (e.g., changes in the number of bodies or line intersections), a warning message is displayed. The sketch is regenerated, but several validation criteria may become invalid.

To restore the last saved configuration, users can click the Recover Part button.

Warning: It is advisable to save the project before stressing the parameters. The restoration process is not 100% reliable in this first version and it is planned to make it more robust.
