Magnet

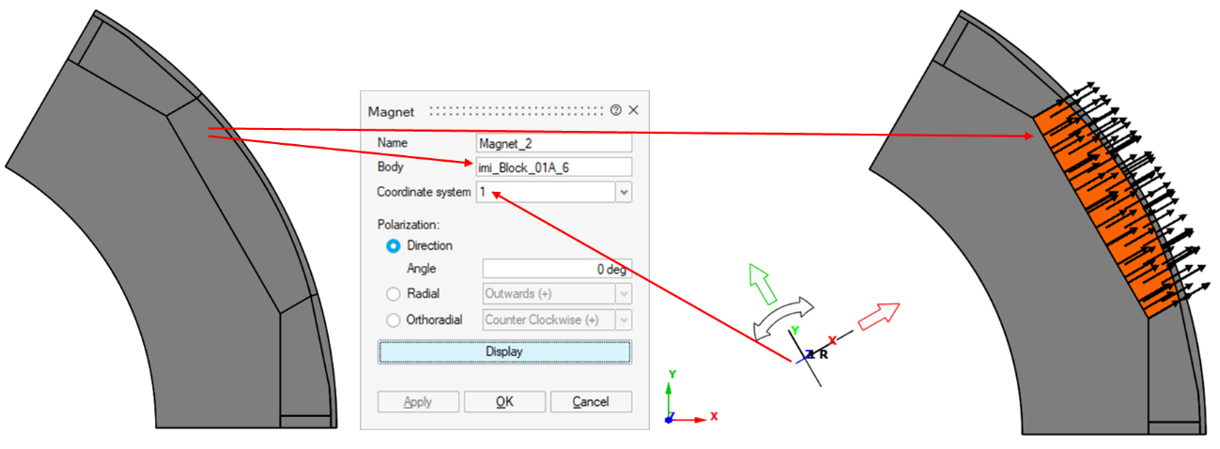

Assign bodies with magnetic properties to the Magnet Region. Specify for each body:
  • Body Name
  • Coordinate System ID for polarization (use the local system if defined)
  • Polarization Type: Choose from Direction, Radial +, Radial –, Orthoradial +, or Orthoradial –.

Assigned bodies change color from light grey to orange. When clicking the Display button, the polarization of the magnet is shown.

Note: Magnet Region material is set in FluxMotor.
