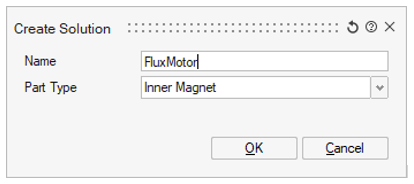

Create the solution

Note: In the current version, only the Inner Magnet part and Outer Slot part are supported in the FluxMotor solution. Other types of parts such as the Inner Salient Pole will be added to the later versions.

Note: The Inner Magnet part can be imported to FluxMotor for all types of machines with inner rotor containing magnets, including:

• 3-Phase / n-Phase synchronous machine with permanent magnets – Inner rotor

Note: The Outer Slot part can be imported to FluxMotor for all types of machines with inner rotor (in other words, outer stator), including:

• 3-Phase / n-Phase synchronous machine with permanent magnets – Inner rotor
• 3-Phase reluctance synchronous machine – Inner rotor
• 3-Phase wound field synchronous machine – Inner salient pole – Inner rotor
• 3-Phase induction machine with squirrel cage – Inner rotor
