Safety Tools

Use the Safety ribbon to access crash and safety post-processing tools.

Figure 1. Safety ribbon in HyperView and HyperGraph

Note: The Clip option is only available in HyperGraph.

Vehicle Crash Regulation Tools

Load Case > Front Impact

From the Load Case group, click the arrow next to the front impact icon,

, to select the following tools:

IIHS Front (40%)
IIHS Front (25%)
MPDB (HyperView only)

Figure 2.

Load Case > Side Impact

From the Load Case group, click the IIHS Side icon,

, to display the tool.

Load Case Menu

From the Load Case drop-down menu, select the following post-processing tools:

Compare Time History
Door Intrusion
Relative Displacement

Figure 3.

Vehicle Impact Regulations Tools

From the Impacts group, you can access the following tools:

Click the Pedestrian icon, , to access the pedestrian impact post-processing tools for head, lower-leg, and upper-leg simulations analysis in accordance with Euro-NCAP, GTR, and C-NCAP regulations.
Click the Instrument Panel icon, , to access the post-processing tool for FMVSS201 and ECE-R21 regulations.
Click the Upper Interior Impact icon, , to access the post-processing tool for FMVSS201 and ECE-R21 regulations.

Dummy Injury Criteria

From the Occupant group, select the Clip drop-down menu to access the Injury Criteria plot macros.

Note: This option is only available in HyperGraph.

Figure 4.

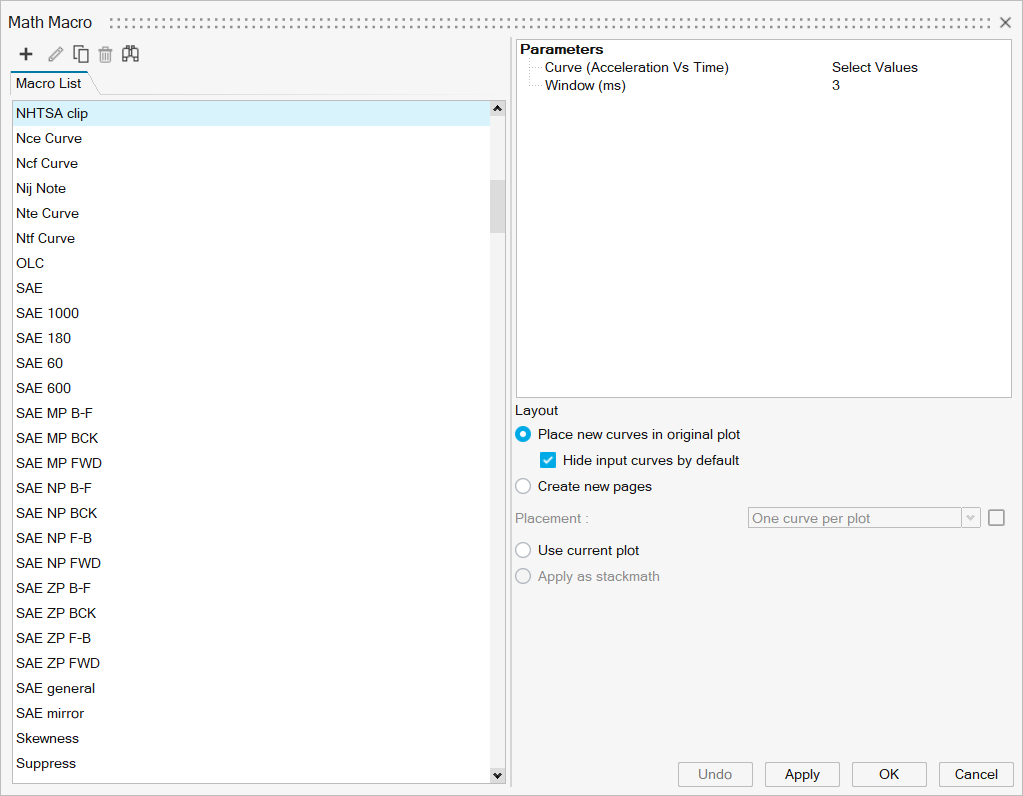

Selecting an injury criteria option displays the Math Macro dialog, where you can define the parameters as necessary.

Figure 5.
