Convert SNIR to BER

Convert a SNIR plot to a Bit Error Rate (BER) plot.

Note: This option is only available for network-planning results.
To obtain a BER plot, do the following:
  1. Display the SNIR plot you wish to convert.

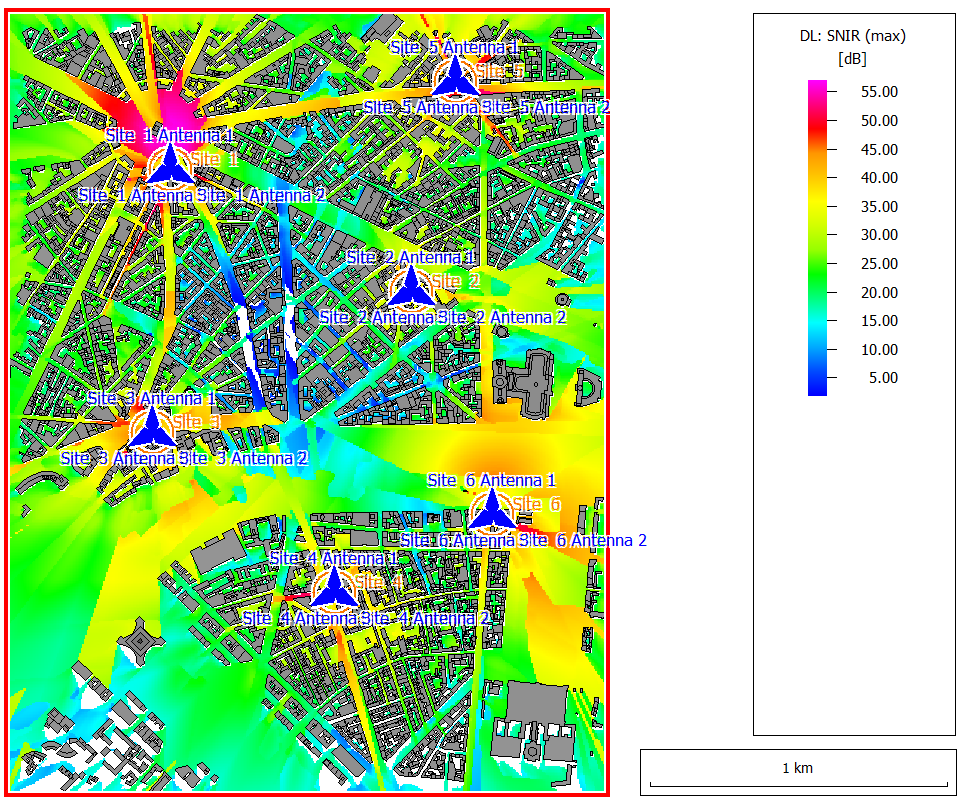

    Figure 1. An example of a SNIR plot.


  2. Click Edit > Convert SNIR to BER.
  3. Specify a text file that contains two columns with the following information:
    1. Column 1: SNIR in dB
    2. Column 2: 10-based log of the corresponding Bit Error Rate
    For example:
    *SNIR [dB]	BER log[dB]
0.0		-0.30
5.0		-0.47
11.0		-1.00
15.0		-2.00
18.0		-3.50
20.0		-5.30
21.0		-6.50
22.0		-7.90
23.0		-9.70
24.0		-12.00

For instance, at a SNIR of 21 dB, the Bit Error Rate for this transmission mode is 10-6.5 ≈ 3.2×10-7. Since the BER curves depend on many parameters, you need to provide the table for the transmission mode of interest.

Figure 2. An example of a BER plot (converted from a SNIR plot).
