Fill Holes

Geometry > Face > Fill > Fill Holes

Dialog Box

This is used to fill the holes present in the selected bodies, faces or edges.

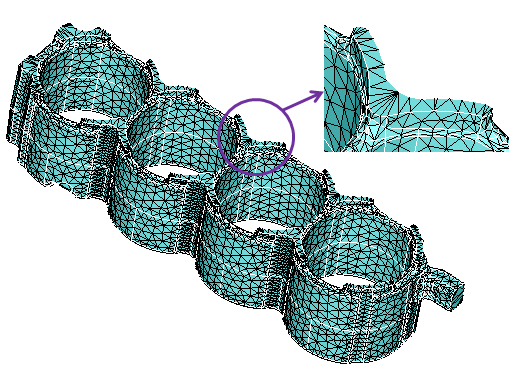

Body

Fill the holes (free edge loops) present in the given FEM body.

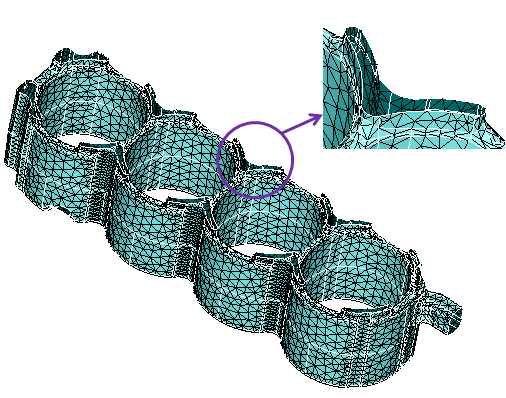

Example

Input
Output

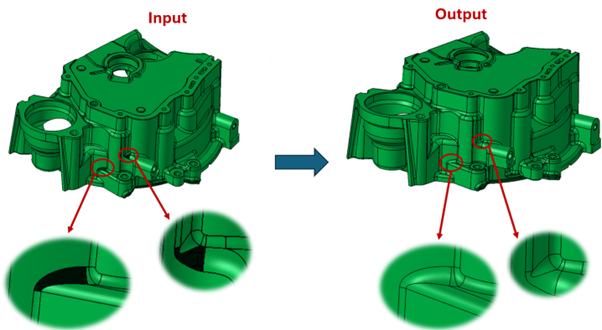

CAD (Parasolid)

Example

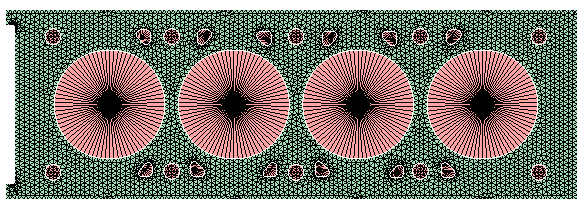

Face

Fill the holes (edge loops) present in the given FEM faces. Loops that are associated with the ignore edges will not participate in the filling process.

Example

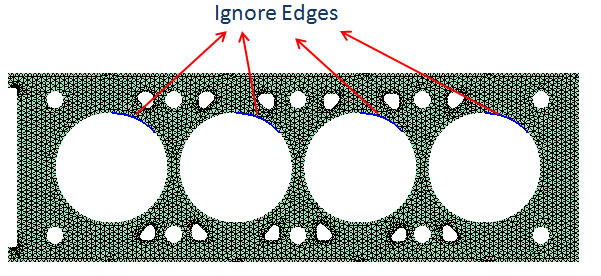

Input

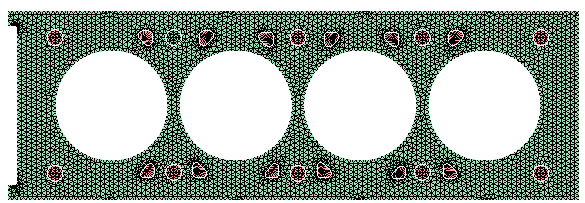

Output (with ignore edges)
Output (without ignore edges)

Edge

Fill the holes (edge loops) associated to the input edges.

Select Connected Free Edges
Displays the free edge loops (holes) associated with the input edges. Using this option you can pick an edge and get the connected free edges.

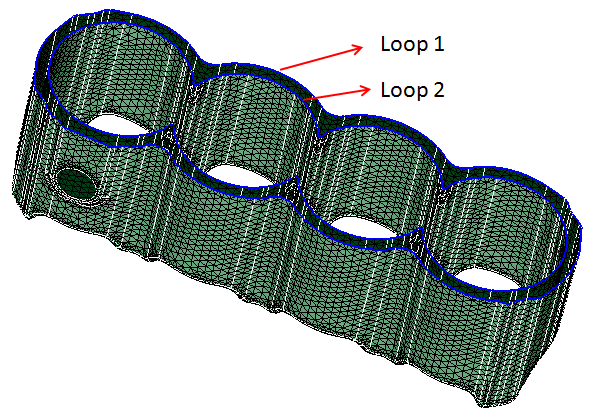

Single face
This will fill all the edge loops as a single face instead of filling each edge loop individually.
Example
- Input

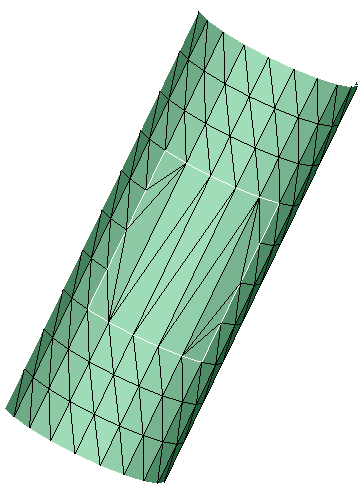

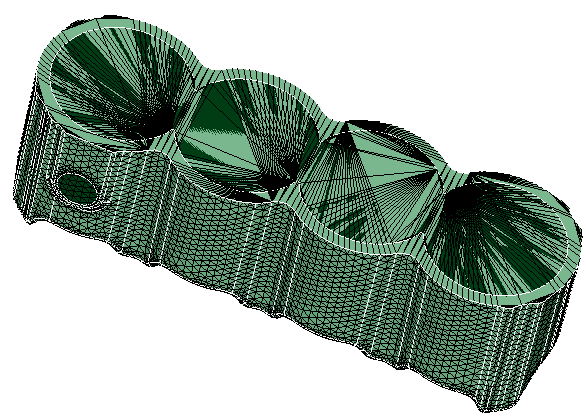

- Output ( with single face)

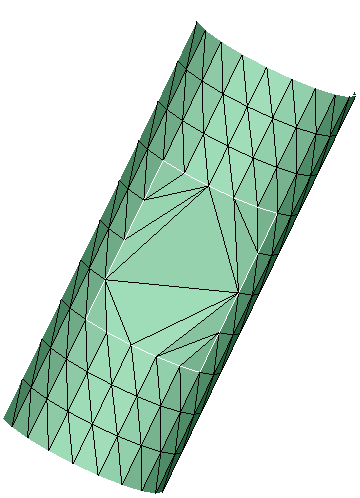

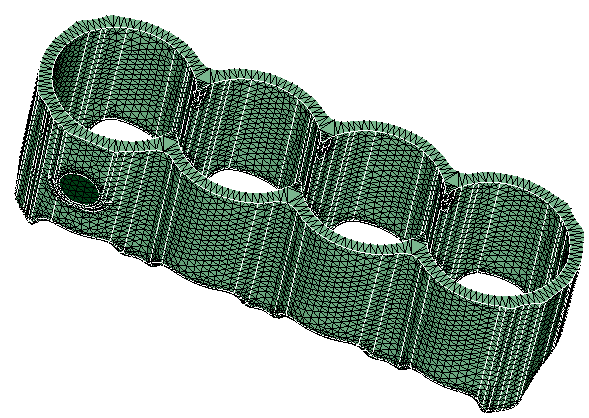

- Output ( without single face)

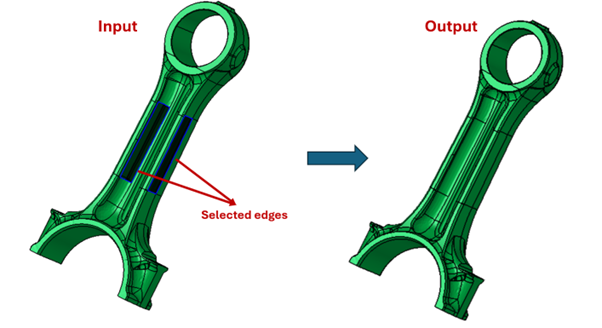

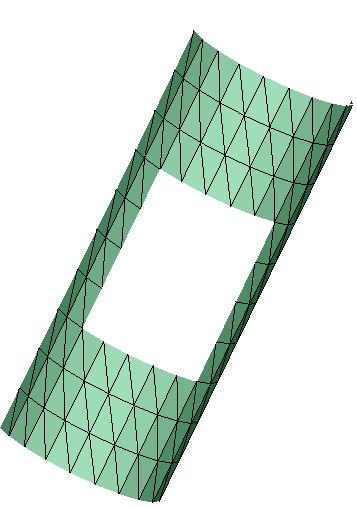

CAD (Parasolid)

Example

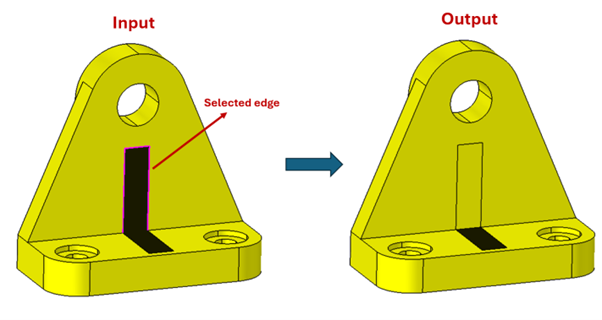

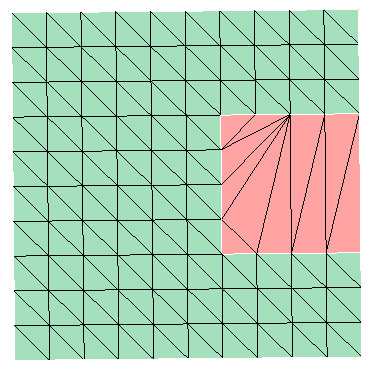

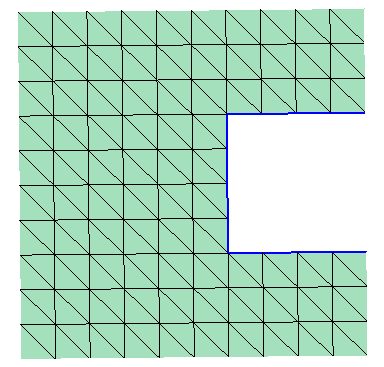

Fill partial loop

If the given input edges do not form a closed loop, this option closes the loop by connecting the two free vertices of the loop with the topological edge and then fills the loop.

Example
