Merge

Geometry > Model > Merge

Description

  1. This tool is used to merge more than one model into a single model.
  2. Pick the models to be merged and click Merge icon.
  3. This tool also supports Parasolid models imported with Save geometry in database option.
  4. This tool also supports merging an ECAD model with a CAD model or another ECAD model.

Example 1

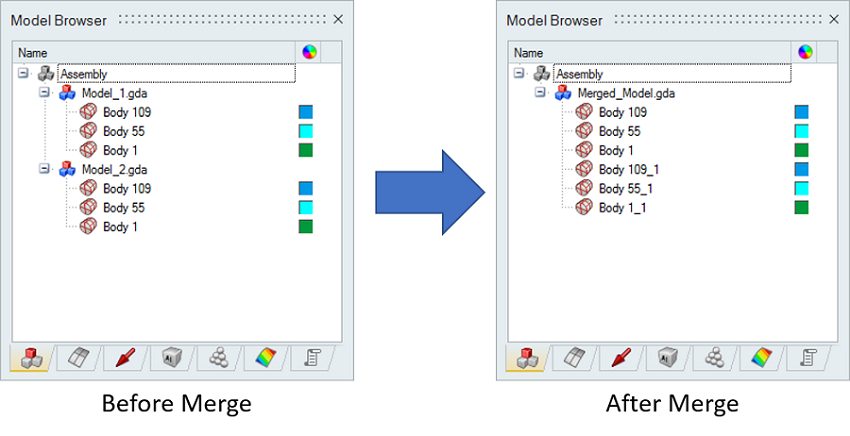

When two models as shown below are merged, both the models get merged into single model with unique body names.

Example 2

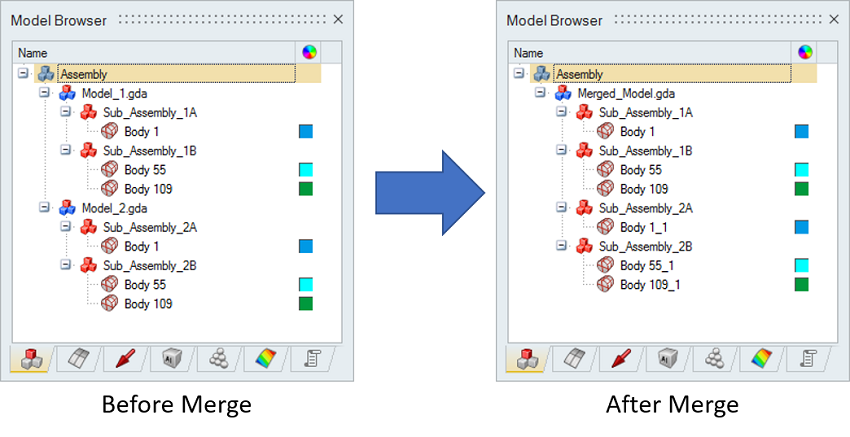

When models with sub models are merged, the sub models are maintained during merging of models.

Note: If none of the models are selected, all the models in tree view are merged.
