Select End Faces
Description
In certain applications like CFD and Mold, we need to have at least a few layers of elements along the thickness of the body. In such cases, we need to identify the end faces (boundary faces) and create the required number of layers on those faces. This tool is helpful in identifying those end faces (boundary faces) to which user can create Face Mesh Control with layer option.
Supported for both CAD and FE bodies.
Example
- Input

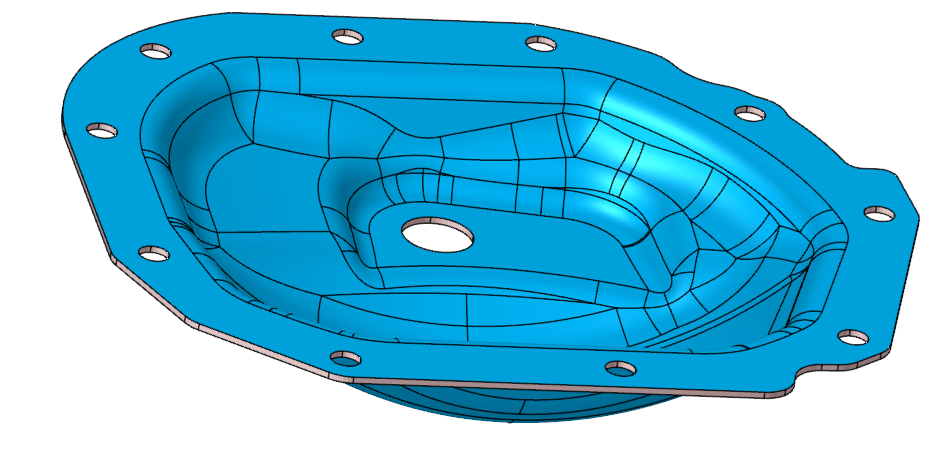

- Output
End faces are added to selection and created as face group.
