Identify Adjacent to PCB

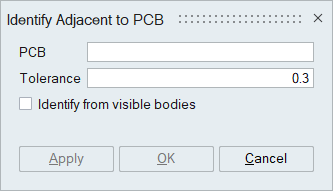

Dialog Box
This tool helps to organize the PCB and its connected devices. Parts that completely enclose inside the PCB and on the same side get grouped to Side1 and Side2 named sub-models. Other parts get grouped to a sub-model named Adjacent. Users can easily do further operations by using this sub-model.
- Identify from visible bodies
Turn on this toggle to consider only the visible bodies for processing.
Example

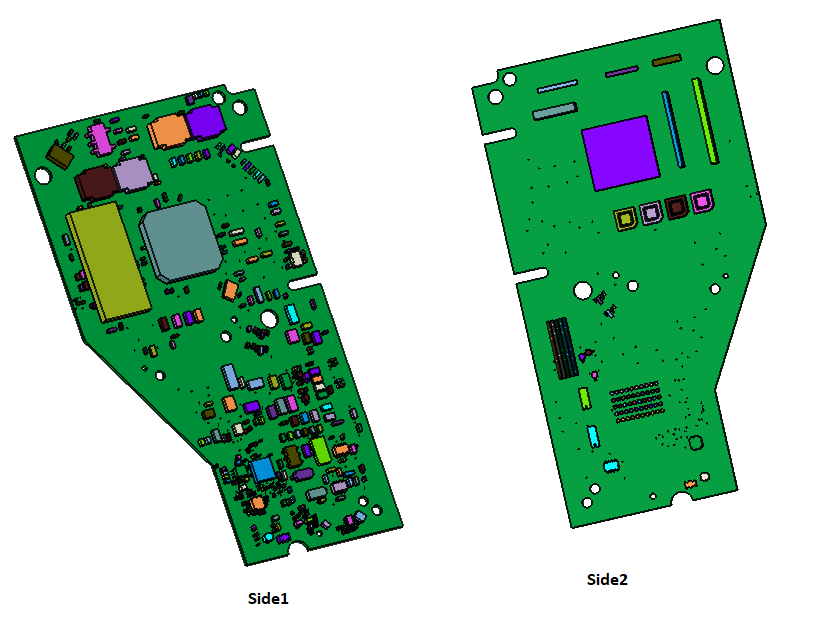

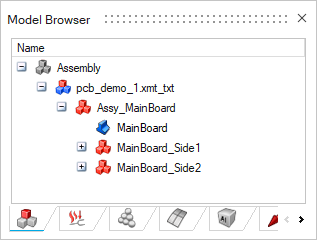

Bodies grouped into Side1 and Side2 sub-models for the given PCB:
