Heat Source

This option is used to the define the type and geometric dimensions of a heat source.

This is applicable for thermal and coupled analysis of welding solution.

Two types of heat sources are currently supported:

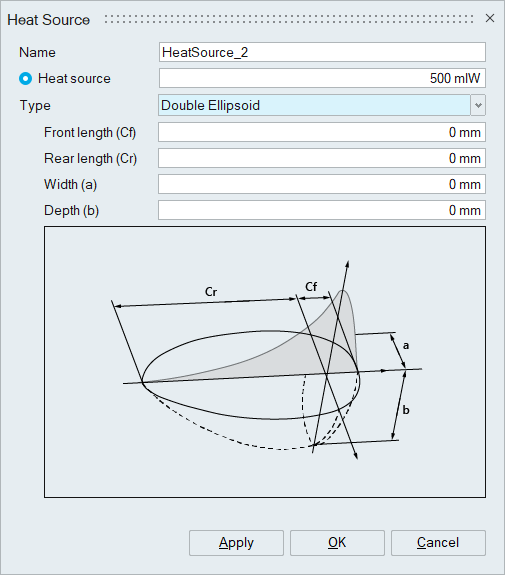

  • Double ellipsoid
  • Spherical
