Design Variable

Analysis > DOE > Design Variable

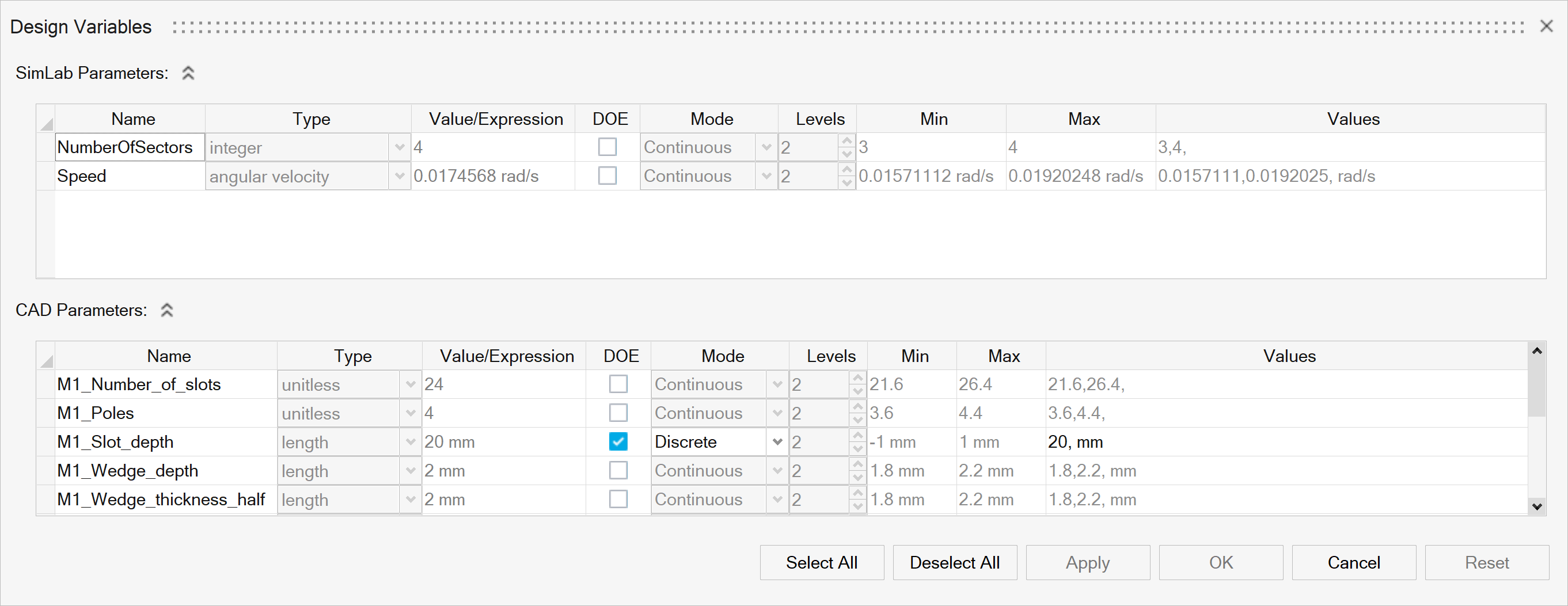

This tool allows to select the parameters to define design variables for DOE.

Description

DOE: To enable the parameter for DOE.
Mode:To choose the desired mode for generating DOE values.
- Continuous:
  - Levels:To define the number of level for continuous mode.
  - Min/Max:To specify the Min/Max limit.
  - Values:Based on the levels and Min/Max, the DOE values will be calculated and listed.
- Discrete:
  - Values:Click on this cell to open the table and specify the discrete values.
Reset:
- To reset the modified DOE values to previous saved state.
