Defining a Dielectric

Define the first dielectric with $ε_{r}$ = 1.5 with label Substrate1.

myDiel1 = myProject.Definitions.Media.Dielectric:AddDielectric(1.5, 0, 1000)
myDiel1.Label = "Substrate1"

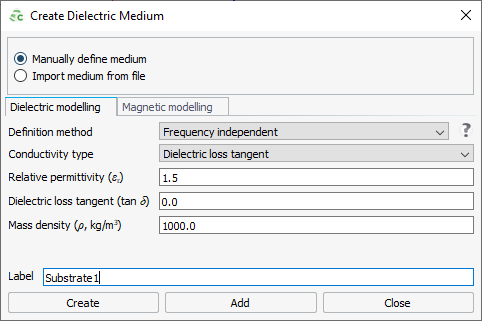

Figure 1. A dielectric with $ε_{r}$ = 1.5 and label Substrate.

A dielectric is an object and since there may be multiple objects in the model, it is part of the DielectricCollection.
Search for DielectricCollection in the Help¹.
In DielectricCollection, under Method List, search for methods that are applicable to dielectrics:
- AddDielectric (properties table)
- AddDielectric (relativepermittivity Expression, losstangent Expression, massdensity Expression)
- AddDielectric ()
To create the first dielectric, we will use the method:
```
AddDielectric(relativepermittivity Expression, losstangent Expression, massdensity Expression)
```
Fill in the values for the dielectric
```
AddDielectric(1.5, 0, 1000)
```
Determine the syntax to prepend to AddDielectric:
1. Since AddDielectric is a method, it is indicated by prepending a : (colon).
```
:AddDielectric(1.5, 0, 1000)
```
2. In the Help, under DielectricCollection > Usage locations, note the following:
```
Media object has collection Dielectric²
```
  Since we know that Media is the not one of the top levels in the model tree, click Media.

  In the Help, under Media > Usage locations , note the following:
```
ModelDefinitions object has property Media.
```
3. Click ModelDefinitions.
4. In the Help, under ModelDefinitions > Usage locations, note the following:
```
Model object has property Definitions.
```
  Since we know that Model is the one of the top levels in the model tree, the result is then:
```
Definitions.Media.Dielectric:AddDielectric(1.5, 0, 1000)
```
5. Since the project is the highest level, we prepend our reference to the project:
```
myProject.Definitions.Media.Dielectric:AddDielectric(1.5, 0, 1000)
```

Add a handle to the dielectric:

myDiel1 = myProject.Definitions.Media.Dielectric:AddDielectric(1.5, 0, 1000)

Set the dielectric label to Substrate1:
```
myDiel1.Label = "Substrate1"
```
Tip: View the Dielectric (object) in the Help for a short example.

¹ The API is available in the Feko Scripting and API Reference Guide (PDF) or Feko WebHelp.

² The part that is prepended to the method, maps to the CADFEKO model tree structure.
