Import a parameterized part from SimLab sketcher
Make the topology definition easier
It is now possible to create parameterized parts that are compatible with FluxMotor via SimLab.
The FluxMotor Solution integrates seamlessly with SimLab tools, including Import (Database, CAD, or Sketch) and the Sketch Environment, to provide a comprehensive workflow for creating and exporting parts compatible with FluxMotor.
Users can perform the following workflows within this solution in SimLab:
Customize catalog parts: Modify existing parts from the catalogs by adjusting design details or adding new features.
Create a part from scratch: Define a custom FluxMotor part using the basic sector template, specifying the inner diameter, outer diameter, and the number of repetitions within a motor.
Import from CAD: Generate a FluxMotor part by importing a CAD model, either of a specific part or the entire motor assembly.
 |
|

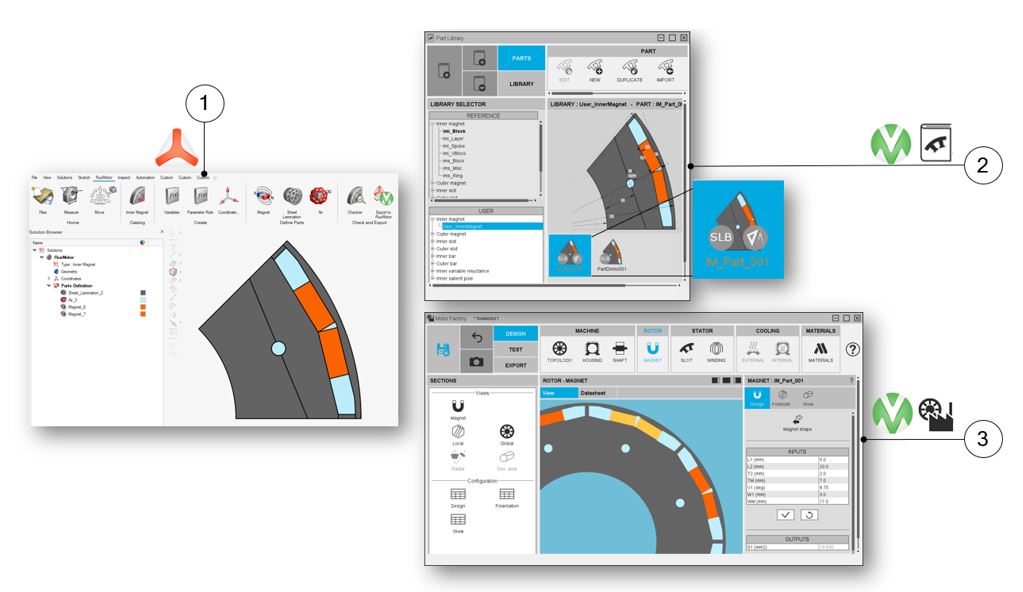

Workflow between SimLab sketcher, Part Library and Motor Factory |

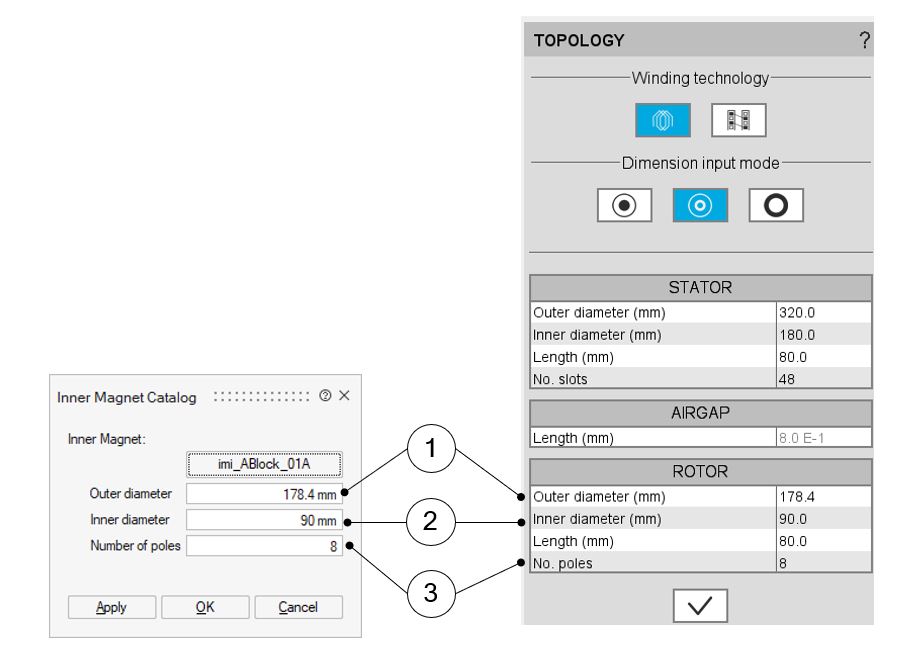

Users cannot modify these parameters within FluxMotor. To ensure compatibility, the motor in FluxMotor must have the same (Rotor outer diameter, Rotor inner diameter, No. poles) as defined in the SimLab part for successful import.
For additional information, please refer to SimLab user help guide.
 |
|
The structural data are not yet parameterized. They must be the same between both environments. |
