New connectors for HyperStudy

New connectors for HyperStudy for two tests of the wound field synchronous machines

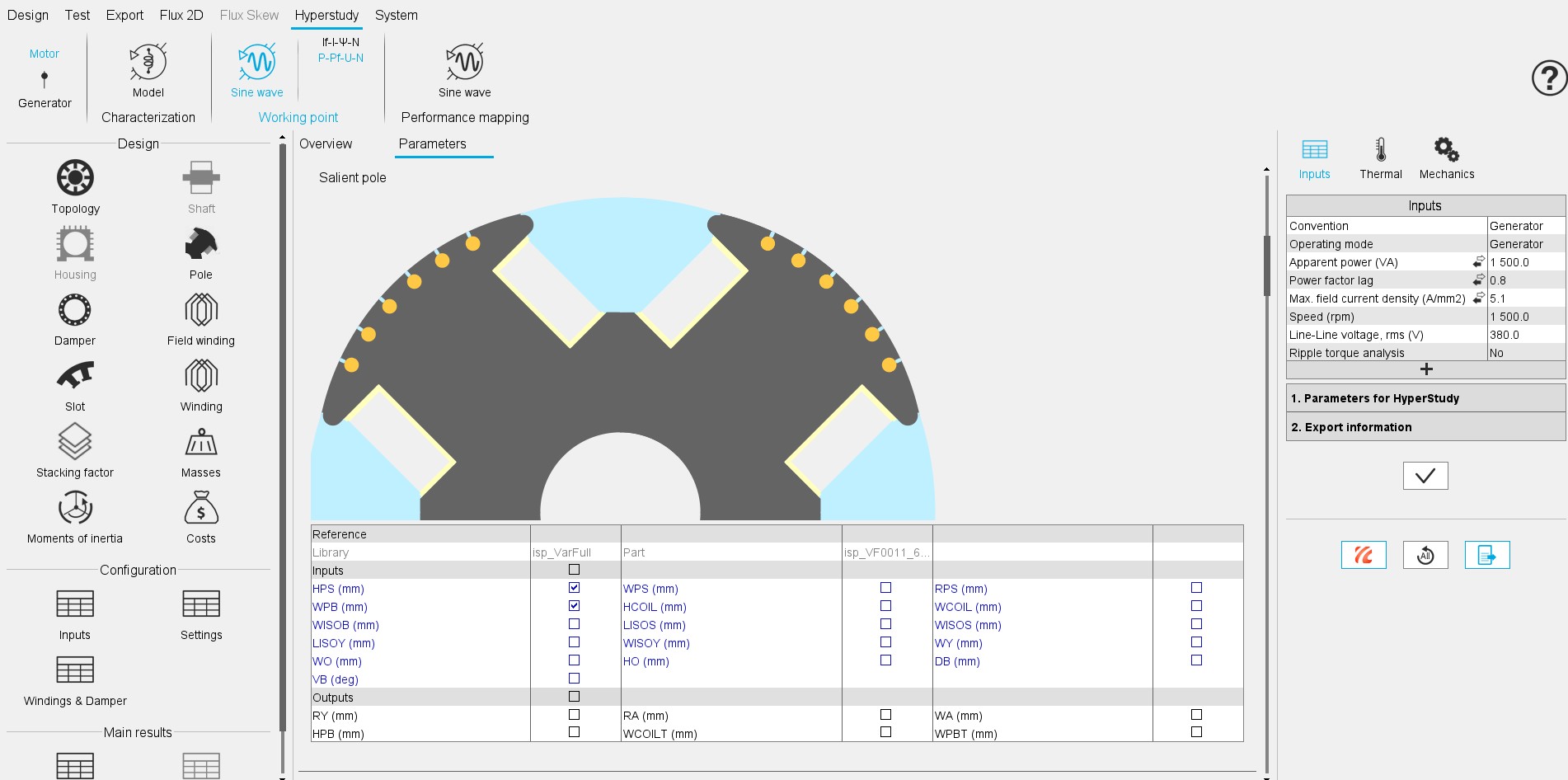

One new connector for coupling FluxMotor and HyperStudy has been implemented for the wound field synchronous machine.

The new connector HyperStudy is dedicated to the test: The Characterization / Model / SSFR (Equivalent scheme computation)

Thus, it is now possible to optimize the design of a wound field synchronous machine with inner salient pole to adapt machine behavior to different scenarios (steady-state or transient), such as short-circuit, load variation, steady-state operating point, etc..
