Modification of Corners of Objects

In outdoor and indoor databases, the corners of single objects can be modified. A list of all corners can be reached by selecting an object, clicking with the right mouse button and selecting Properties.
Figure 1. Selected building in urban database with context menu.

Besides a few other information, the Object Properties dialog contains a list with all corners of the wall or building. Double-clicking an entry in the list opens a dialog which allows changing its three coordinates (x, y and z).

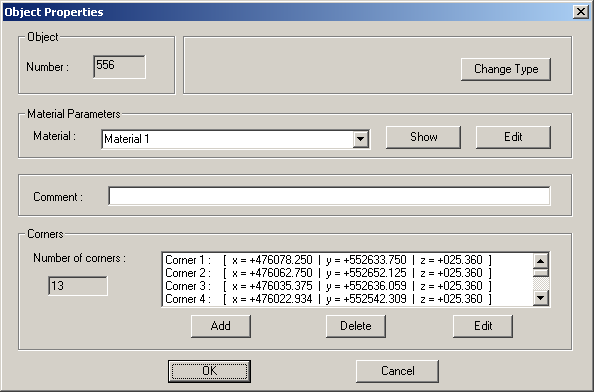

Figure 2. The Object Properties dialog.

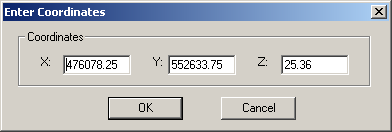

Figure 3. The Enter Coordinates dialog.

There are two limitations for changes to the coordinates. In indoor databases, the corners must describe a planar flat if that is not the case all changes will be reverted. In outdoor databases, a change to the z value of a corner will change the z value of all corners. All corners of a building always have the same height.
