Create Shower
Introduction
“Create shower” mimics the behaviour of actual shower. Shower is represented using group of nozzles arranged in a certain pattern. It acts as an inlet in the water management analysis.

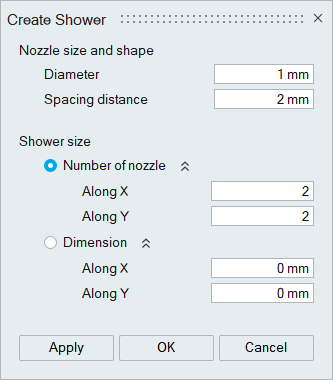

Nozzle Size and Shape

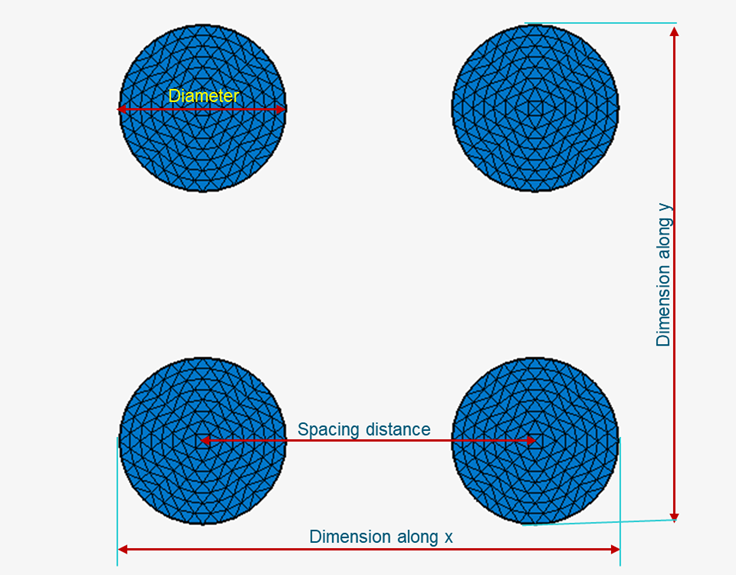

Diameter
It represents the diameter of each nozzle.
Spacing distance
It is the centre-to-centre distance between each nozzle. The default spacing distance is twice the diameter of the nozzle.
Shower size
Number of nozzle
Based on the number of nozzles specified “Along X” and “Along Y”, the number of nozzles will be created in global X and Y axis.
Dimension
Based on the dimensions specified “Along X” and “Along Y”, using the diameter and spacing distance, the number of nozzles will be created in the global X and Y axis.
