Identify Part
Description
In vehicle wading analysis, components are classified under the following sub-assemblies- Body
- Front Wheel
- Rear Wheel

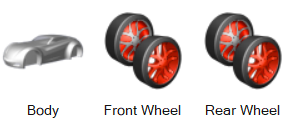

The user can manually classify the components by using the “Body”, “Front Wheel” and "Rear Wheel" options.
Select the components and click on either Body or Front Wheel or Rear Wheel option. Sub-assembly will be created for the selected components and corresponding material will be automatically assigned to it.
The front and rear wheels should be separate components. The wheel can be either a single component or it can be a combination of both tire and rim.
Note: After classifying the entities in the solution as Body,
Front Wheel, and Rear Wheel, the "Auto Vehicle Position" (thunderbolt icon) is
used to position the classified entities to the desired orientation relative to
the channel and its corresponding domain will be automatically created.
