Test Models

Use the Model Testing tools to test models and review test results.

Mean Absolute Error (MAE)
The MAE metric is a valuable metric to assess the quality of machine learning model predictions because the metric is easily interpreted. MAE is in the units of the predicted quantity, so it means that (on average) any given prediction is off by this amount of error.
Consider the scatter plot of data below (Figure 1), along with a simple regression line of best Fit. Each scatter point represents a data point and the line represents the predicted values. The means the vertical projected distance from any point to the line is the error. This metric is a property of the predictive model and is true for any given point of prediction. In this plot, the MAE has a value of 1.0. Using the MAE as an estimate of predictive error, any given prediction may be off by 1.0 units (on average). For example, the predicted value at the far right of the curve produces a value approximately 15, while a prediction near the far left of the domain produces approximately 2. Using the MAE of the model as a reasonable estimate of error, both the right and left side predictions would have errors (on average) of 1.0. Note that these would result in different % errors (about 15% and 50% respectively).
Figure 1.


clear all
clc

A= 5/30;
B= 5;

d = 8.235;

x = -20:1:60;
rand('seed',4);
y  = A*x + B + d*rand(size(x)).*(rand(size(x))-0.5);
yl = A*x + B;

function yf = func(p,x)
	yf = p(1)*x + p(2);
end
p = lsqcurvefit(@func,[A,B],x,y)
yl2= p(1)*x + p(2);
scatter(x,y);
line(x,yl2);

MAE=mean(abs(yl2-y))
  1. From the PhysicsAI ribbon, select the Test Machine Learning Model tool.
    Figure 2.

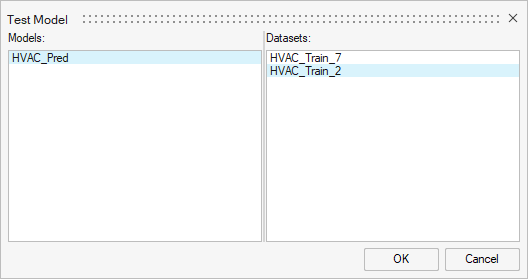

    The Test Model dialog opens.
  2. Select a model and Dataset.
    Figure 3.


  3. Click OK.
    The Model Testing dialog opens.
    Tip: You can also open the Model Testing dialog by selecting the Review Test Results tool.
    Figure 4.


  4. Click Detailed Report to open the View Score Report.
  5. In the Model Testing dialog, select a Run ID and click Display File to view the results in the modeling window.
  6. Close the Model Testing dialog.
