Design

Type of frame

In this section, three choices are available to define the type of frame topology: None, Circular or Square.

By default, housing type is set to “None”. There is no frame.

Important: When “None” is selected, access to External cooling and Internal cooling environments is locked.

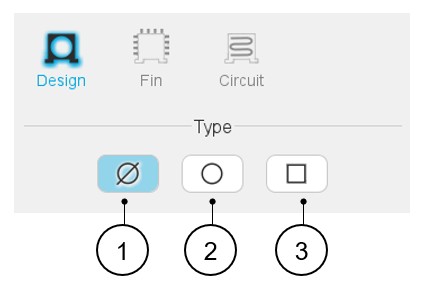

Table 1. Shape frame design area - Housing type available

1	Default setting: Housing type is « None ». The machine has no frame.
2	Button to select a circular-shaped frame.
3	Button to select a square-shaped frame.

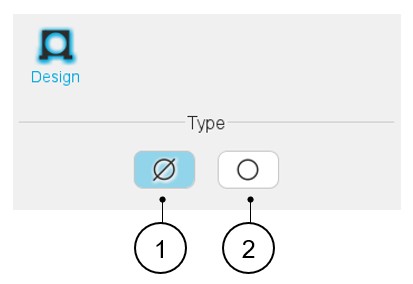

Table 2. Housing design area – Housing type available for outer rotor topology

1	Default setting: Housing type is « None ». The machine has no frame.
2	Button to select a circular-shaped frame.

Circular shape

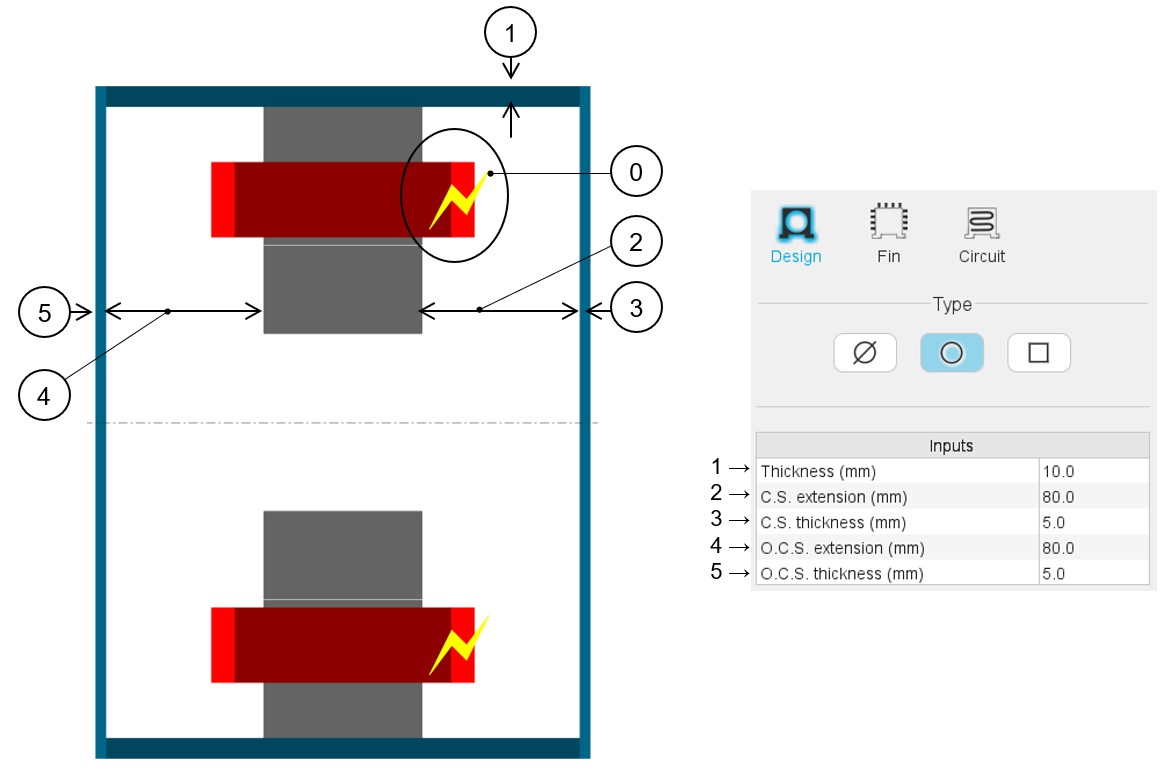

Table 3. Shape frame design area - Circular shape - User input parameters to define the frame dimensions in the axial view

0	Definition of the Connection Side (C.S.). It is identified by yellow lightning. The other side is called the Opposite Connection Side (O.C.S.). This helps to easily differentiate between both sides of the machine.
1-5	User input parameters to define frame dimensions in the axial view.

Square shape

The user inputs for defining the frame dimensions in the axial view are the same as in the case of the circular shape frame.

Important: The square shape topology is only available for inner rotor topology.

Note: The inner length of the square shape frame is automatically defined by the stator outer diameter, which is defined as structural data in the specification.

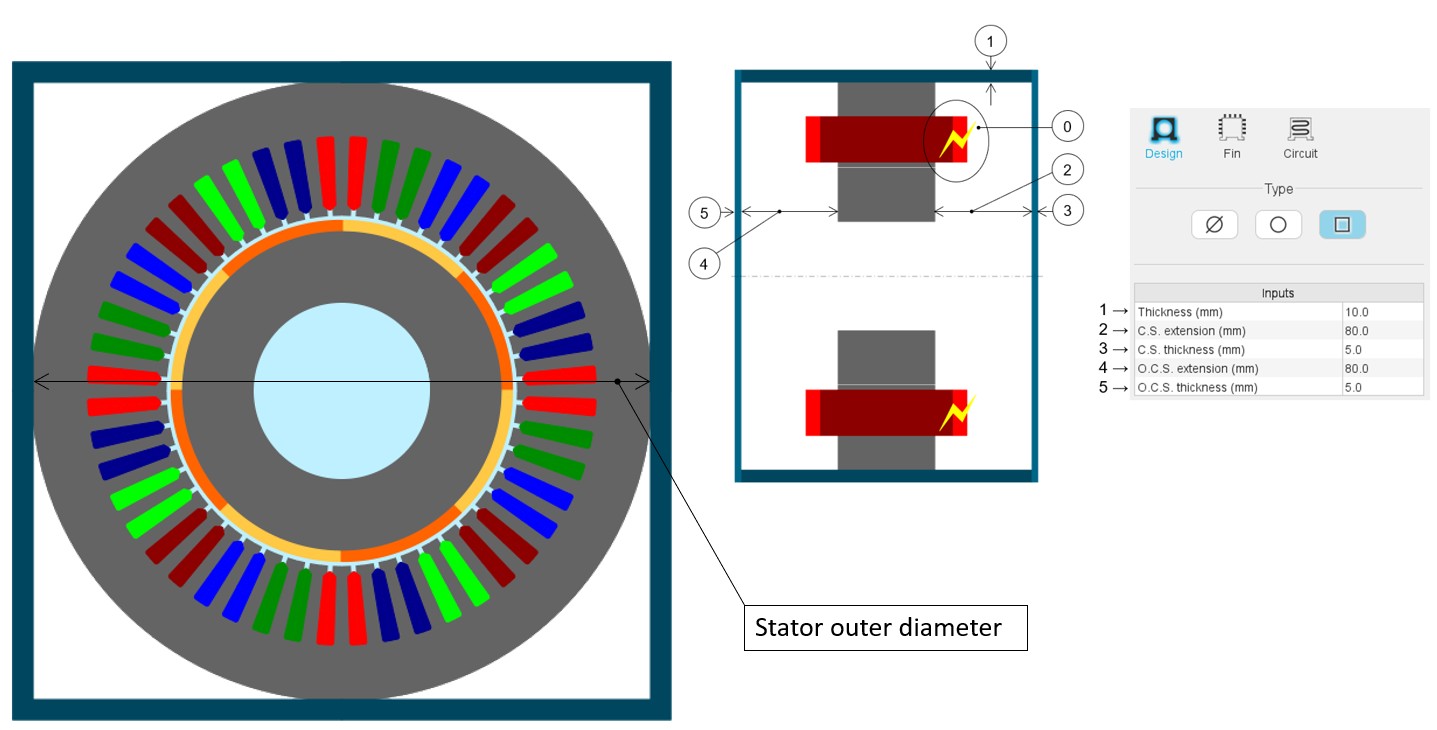

Figure 1. Shape frame design area - The inner length of the square shape frame

Validity domain

Here are the allowed range of values of the frame dimensions in the axial view:

Thickness of the frame: ]0, 50] mm.
Connection side extension: ]0, 20000] mm.
Connection side – End-plate thickness: ]0, 50] mm.
Opposite connection side extension: ]0, 20000] mm.
Opposite connection side – End-plate thickness: ]0, 50] mm.

Combination between lamination outer shape and frame types

Table 4. Combination between lamination outer shape and frame types
		Frame type
		None	Circular	Square
Lamination outer shape	None
	Circular
	Square

Table 5. Combination between lamination outer shape and frame types

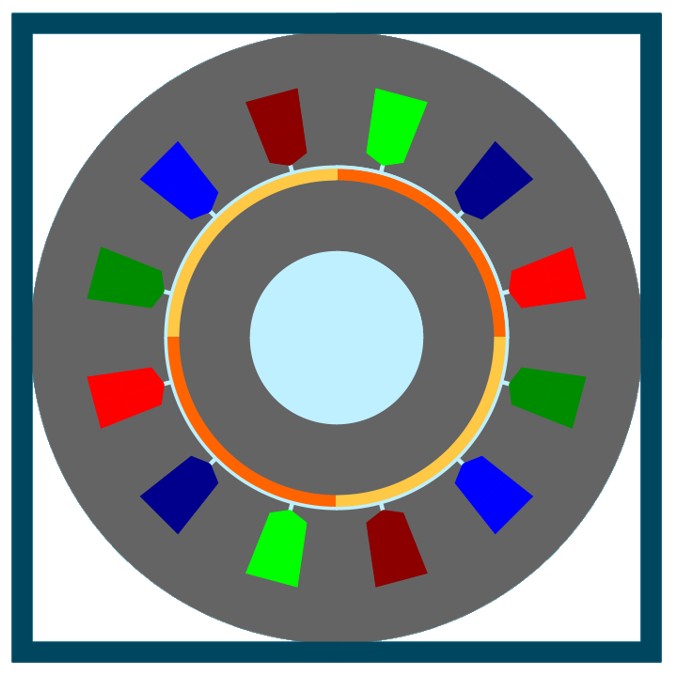

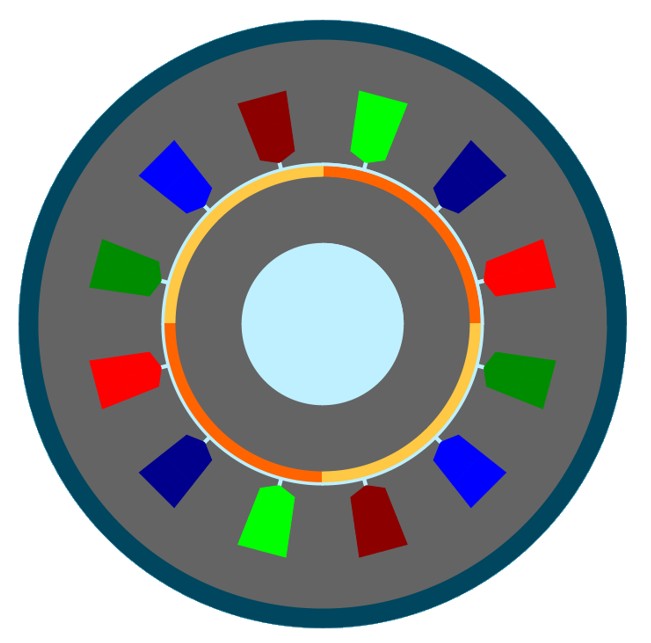

Circular shape lamination & Circular shape frame	Circular shape lamination & Square shape frame	Square shape lamination & Square shape frame
