Circuit

Type of cooling circuit

In this section, four choices are available to define the type of cooling circuit topology: None, Zig-Zag, Solenoid, User shape.

By default, there is no cooling circuit. The cooling circuit type is set to “None”.
Important: Access to the “Circuit” area is unlocked when a frame is defined whose shape is circular or square.

Access to the “Cooling circuit” area is unlocked when a frame is defined, when its shape is circular or square.

Remember: The cooling device “Circuit” is not available for outer rotor topology.

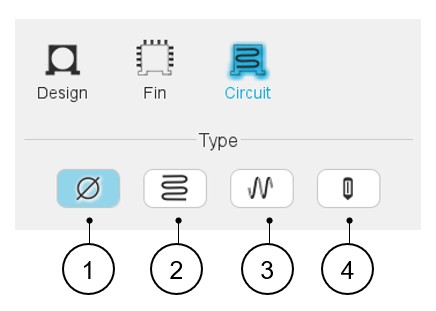

Table 1. Cooling circuit type available


1 Default setting: Cooling circuit type is « None ». There is no cooling circuit inside the housing
2 Button to select Zig-Zag type cooling circuit.
3 Button to select Solenoid type cooling circuit.
4 Button to select User type cooling circuit.

Topology and dimensions

Zig-Zag type cooling circuit

For the Zig-Zag type cooling circuit, two circuit sections are proposed: Circular and rectangular.

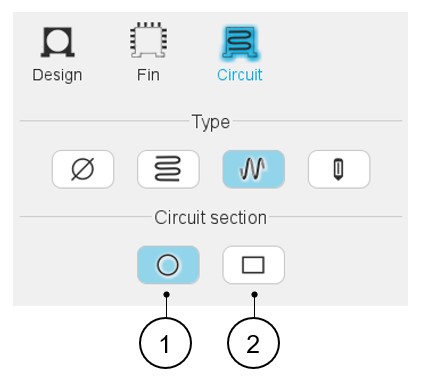

Table 2. Cooling circuit type topology design area – Topology and dimension of Zig-Zag type circuit


1 Button to select the circular shape (default one).
2 Button to select the rectangular shape.

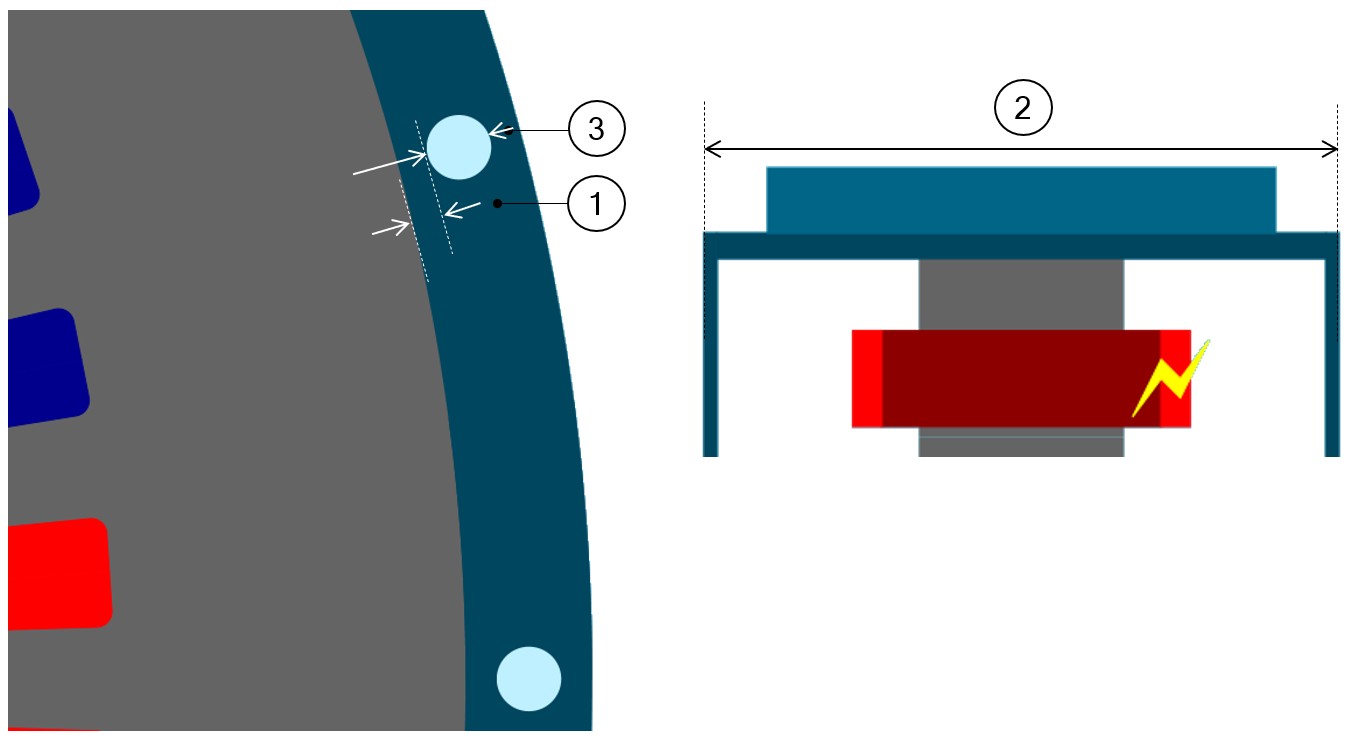

  1. Illustration of the circular section tubes – Inputs
    Table 3. Zig-Zag shape cooling circuit – With circular tubes - Inputs


    1 Yoke shift.
    # No. paths (Number of paths)
    2 Path length in the axial direction
    3 Section diameter

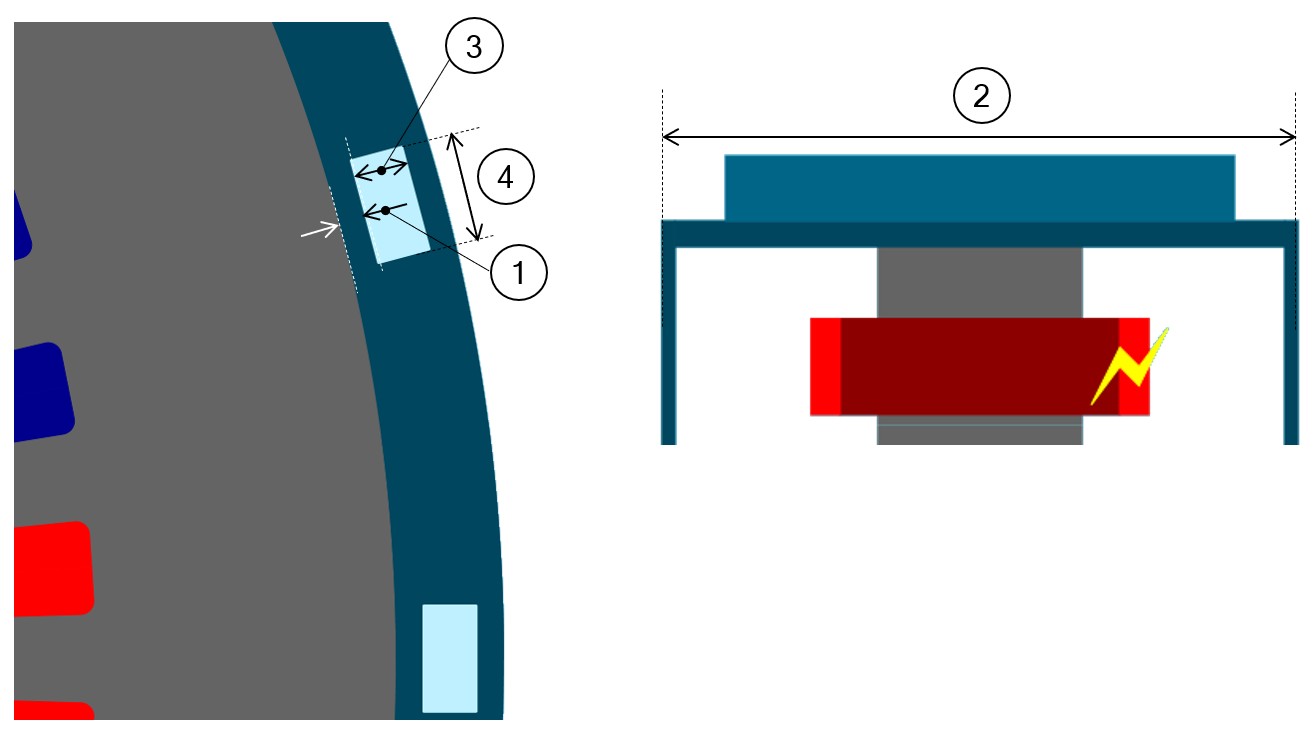

  2. Illustration of the rectangular section tubes – Inputs
    Table 4. Zig-Zag shape cooling circuit – With rectangular tubes - Inputs


    1 Yoke shift.
    # No. paths (Number of paths)
    2 Path length in the axial direction
    3 Section height
    4 Section width

Solenoid type cooling circuit

For the solenoid type cooling circuit, two circuit sections are proposed: Circular and rectangular.

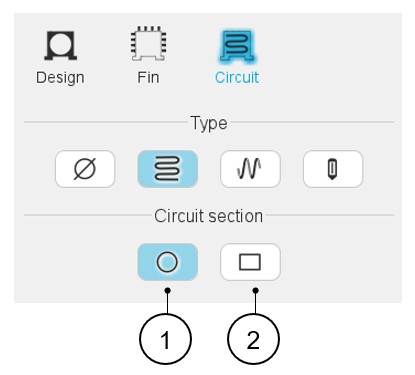

Table 5. Cooling circuit type topology design area – Topology and dimension of solenoid type circuit


1 Button to select the circular shape (default one).
2 Button to select the rectangular shape.

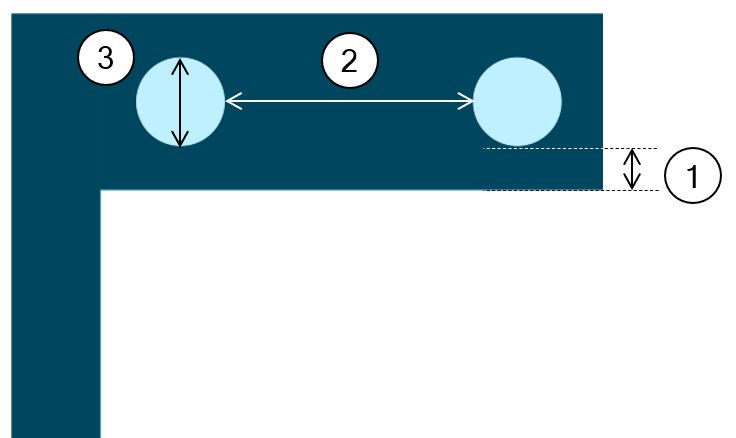

  1. Illustration of the circular section tubes - Inputs
    Table 6. Solenoid shape cooling circuit – With circular tubes - Inputs


    1 Yoke shift.
    # No. turns (Number of turns)
    2 Inter turn pitch
    3 Section diameter

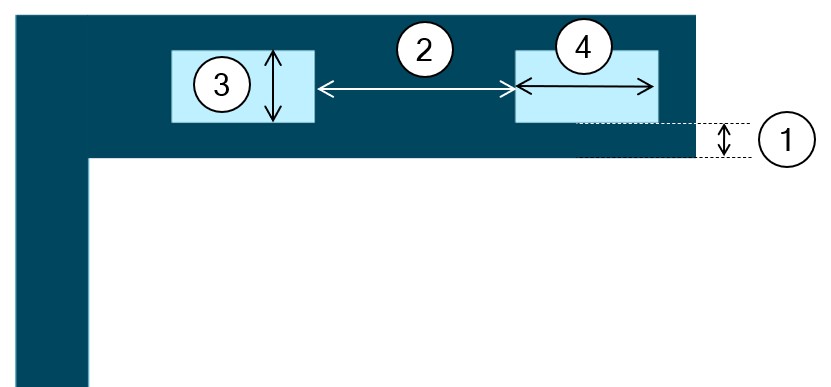

  2. Illustration of the rectangular section tubes - Inputs
    Table 7. Solenoid shape cooling circuit – With rectangular tubes - Inputs


    1 Yoke shift.
    # No. turns (Number of turns)
    2 Inter turn pitch
    3 Section height
    4 Section width

User shape cooling circuit

For the user type shape cooling circuit, two circuit sections are proposed: Circular and rectangular.

In both cases, this way of defining the cooling circuit type allows us to consider the theoretical cooling circuit properties by means of length and section even if the real topology is not directly and precisely defined.

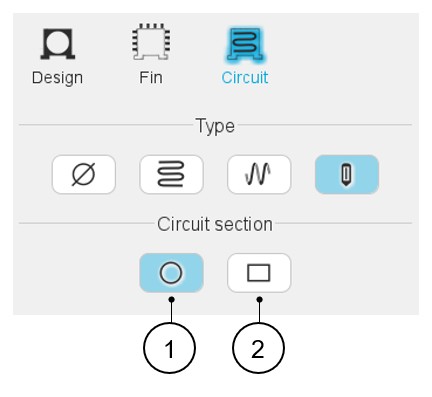

Table 8. Cooling circuit type topology design area – Topology and dimension of user shape type circuit


1 Button to select the circular shape (default one).
2 Button to select the rectangular shape.
  1. Illustration of the circular section tubes – Inputs

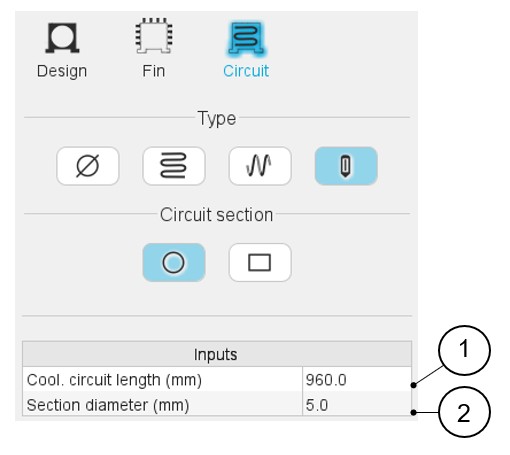

    Table 9. User shape cooling circuit – With circular section tubes - Inputs


    1 Cooling circuit length.
    2 Section diameter of cooling circuit tubes.
  2. Illustration of the rectangular section tubes – Inputs

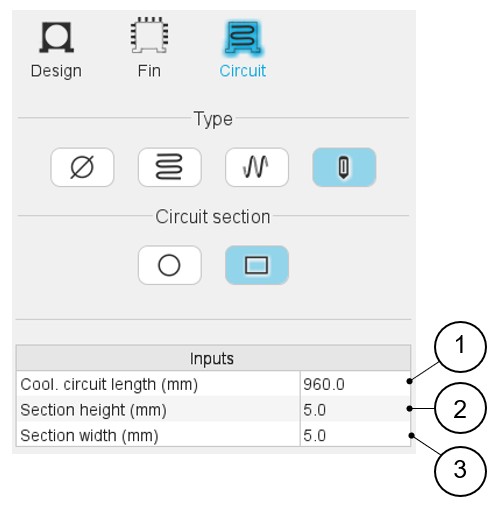

    Table 10. User shape cooling circuit – With rectangular tubes - Inputs


    1 Cooling circuit length.
    2 Section height of cooling circuit tube.
    3 Section width of cooling circuit tube.
