Click Analysis > Display Histogram of Values (absolute). From the sub menu, you can select whether:
the histogram is to be determined for all prediction planes and all horizontal
layers
for prediction planes and surfaces only
for all horizontal prediction planes
for the currently active horizontal prediction plane
for the zoomed area of the currently active horizontal plane
After selecting the area to be evaluated, you have specify the quantization interval to
be used to discretize the result data.
Example

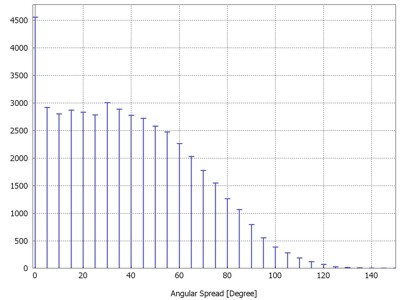

The following example shows a histogram of an angular spread prediction in an urban
environment:Figure 1. Example of a histogram of an angular spread prediction in an urban
environment.
