Profile Functions

Motors and actuators have a profile option on the microdialog that allows you to change how the shaft moves as time elapses (or another independent variable changes).Functions is an option in the micro dialog of the Motion Analyst forces and motions entities that lets you access predefined functions from inside a Profile Editor.

The following profile functions are available:

Step
Step Dwell Step
Single Wave
Oscillating
Swept Sine
Impulse
Ramp
Multi-Signal

The Profile Editor icon is located on the micro dialog for Force and Motion. The icon to the right of the Profile Editor icon is for display only and shows the current function being used.

Figure 1. Profile Editor Icon in Microdialog

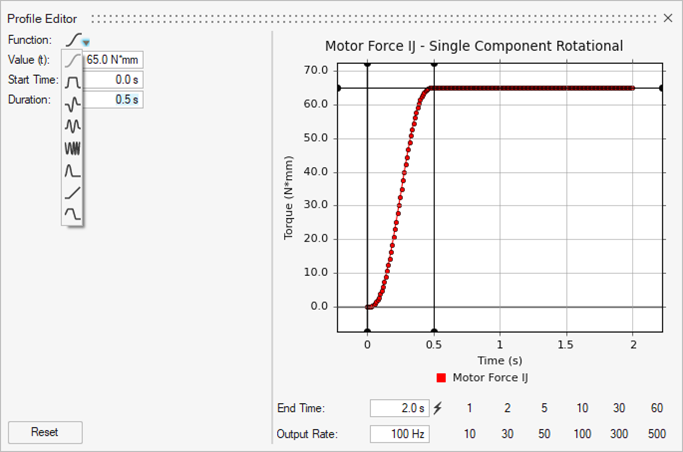

Click on the icon to open the Profile Editor. The available functions can be accessed from the Function drop-down list.

Figure 2. Motors microdialog: Profile functions

Figure 3. Force or Motion Microdialog and Profile Editor

Note: You can change the parameters of a profile function using the Property Editor.

Profile Types: Examples

Learn about various profile types with example waveforms and usage notes for motion profile configuration.

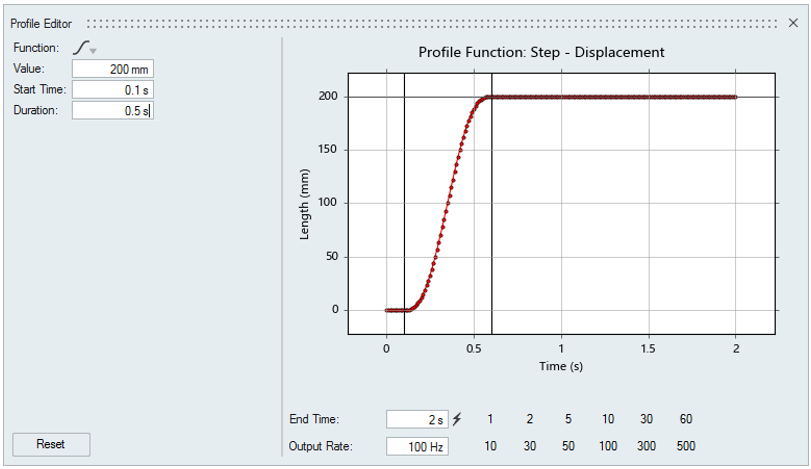

Step

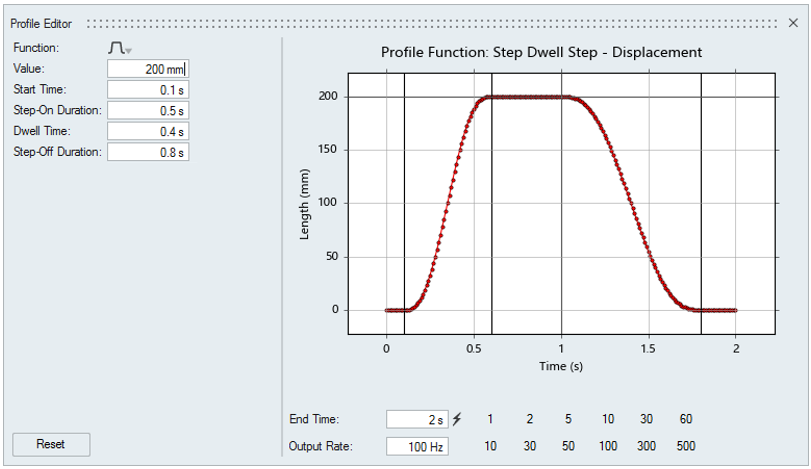

Step Dwell Step

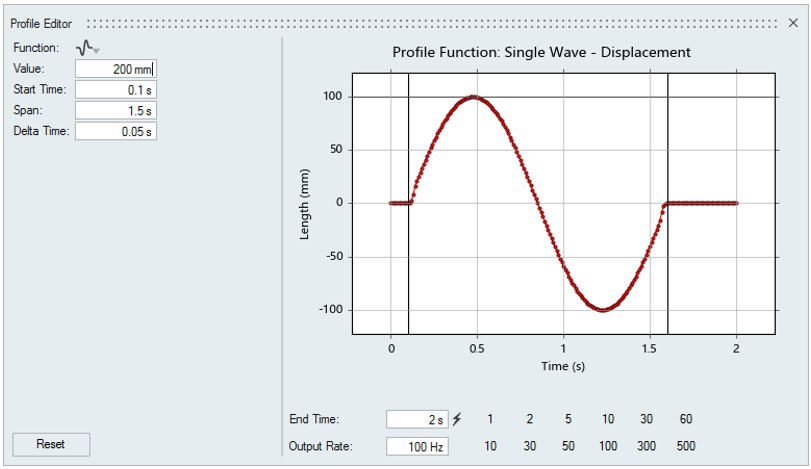

Single Wave

Note: Use the time span span parameter to adjust the duration of the waveform.

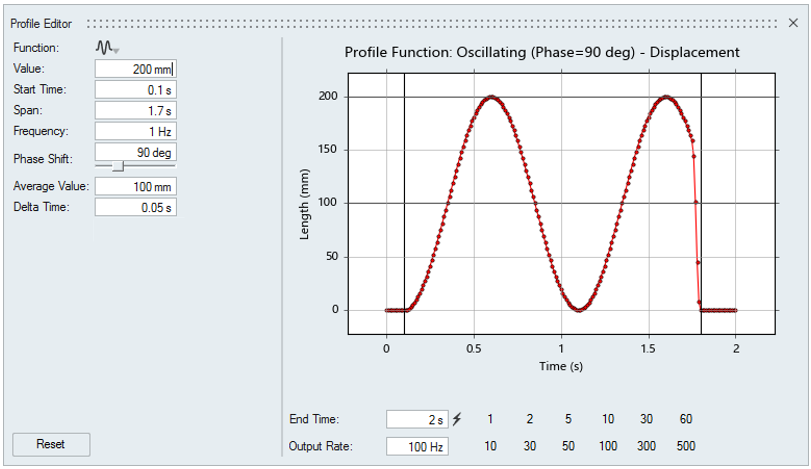

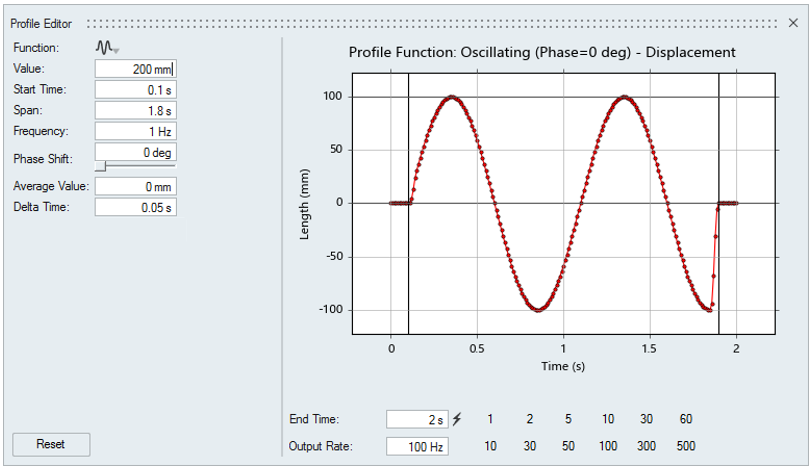

Oscillating

Note: Use the time span span parameter to adjust the duration of the waveform.

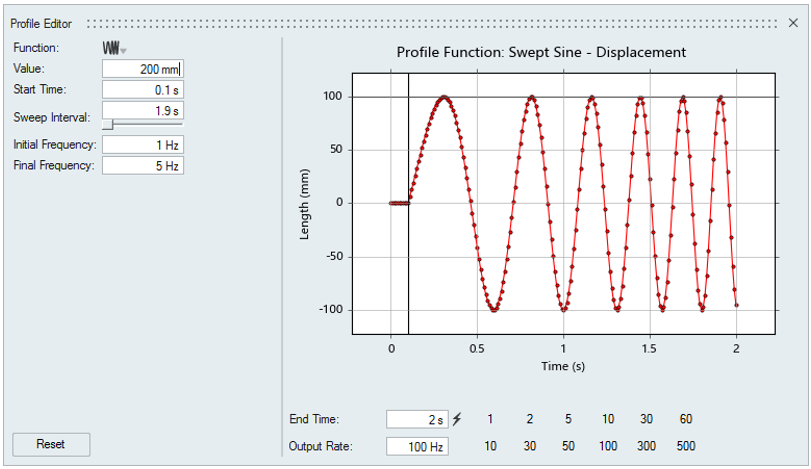

Swept Sine

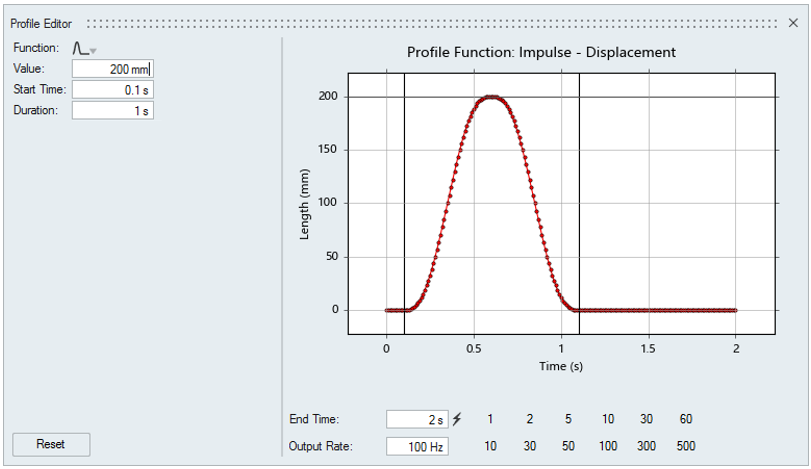

Impulse

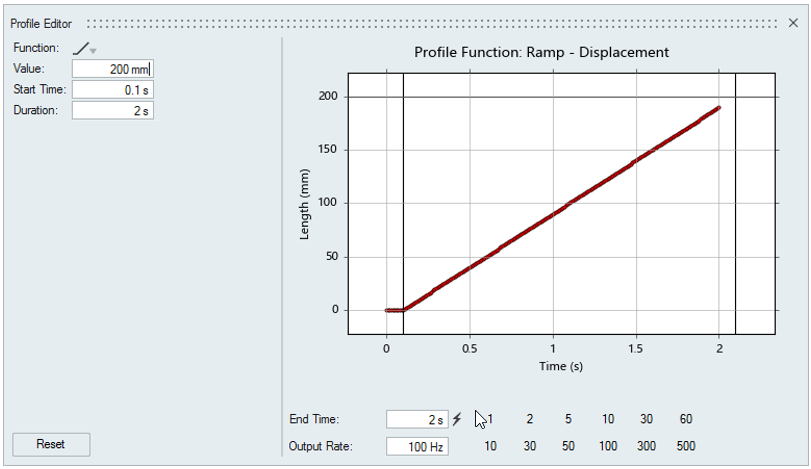

Ramp

Table Profile
