Adding a Far Field Request

Add a far field request to the model.

On the Request tab, in the Solution Requests group, click the Far Fields icon.
On the Request Far Fields dialog, click 3D pattern.

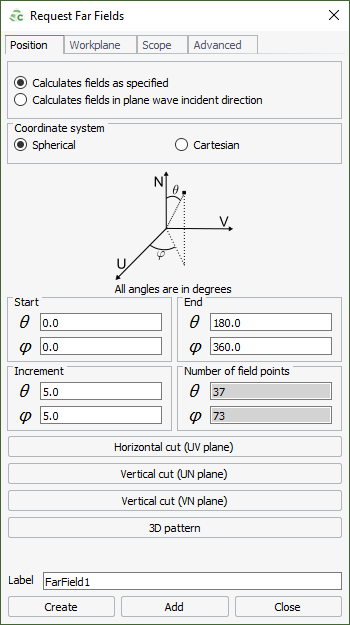

Figure 1. The Request Far Fields dialog.
Click Create to create a far field request and to close the dialog.
