SHAFT
Overview
 |
|
| SHAFT design area | |

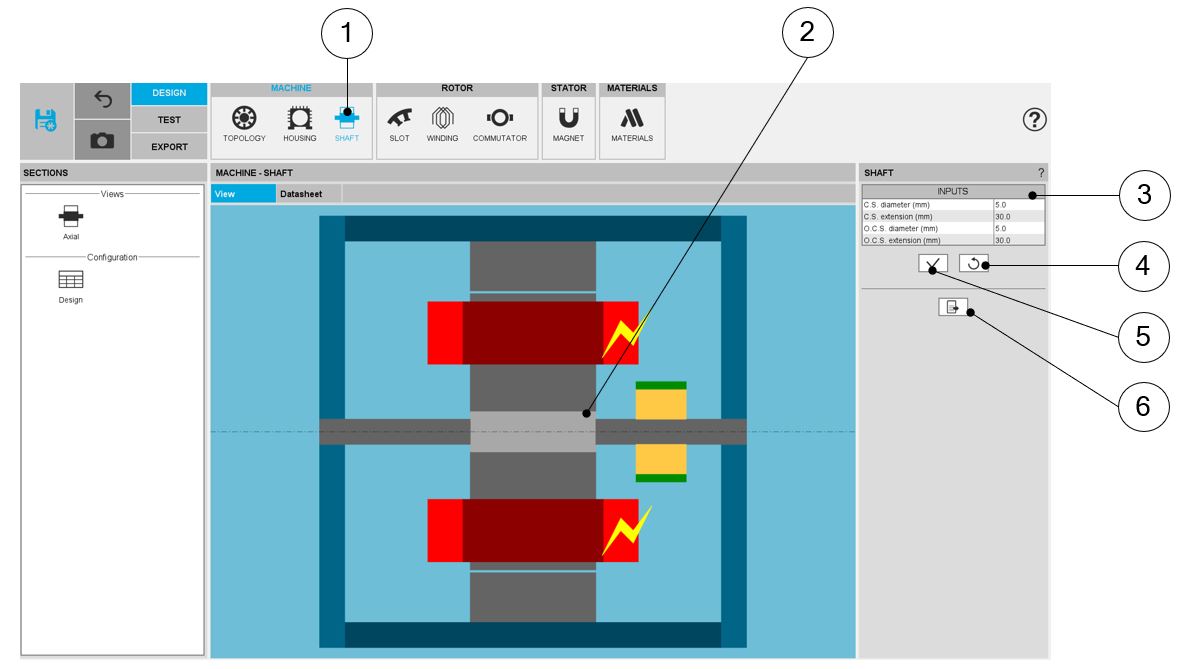

| 1 | Selection of the MACHINE subset: SHAFT panel (Click on the icon SHAFT) |
| 2 | Visualization of the motor axial view to visualize the shaft topology and dimensions. |
| 3 | Shaft input data to be defined |
| 4 | Button to restore default input values |
| 5 | Button to Apply inputs. Pressing the enter key twice applies inputs too. |
| 6 | Icon to export shaft data into *.txt or *.xlsx files. |
Note: For a DC machine a shaft must always be defined, since it is
necessary to support the commut
