Inputs

Shaft type

For DC PM machine a solid shaft is imperatively selected, i.e. shaft is always represented and considered in the rotor design. It is built with a solid material or laminations

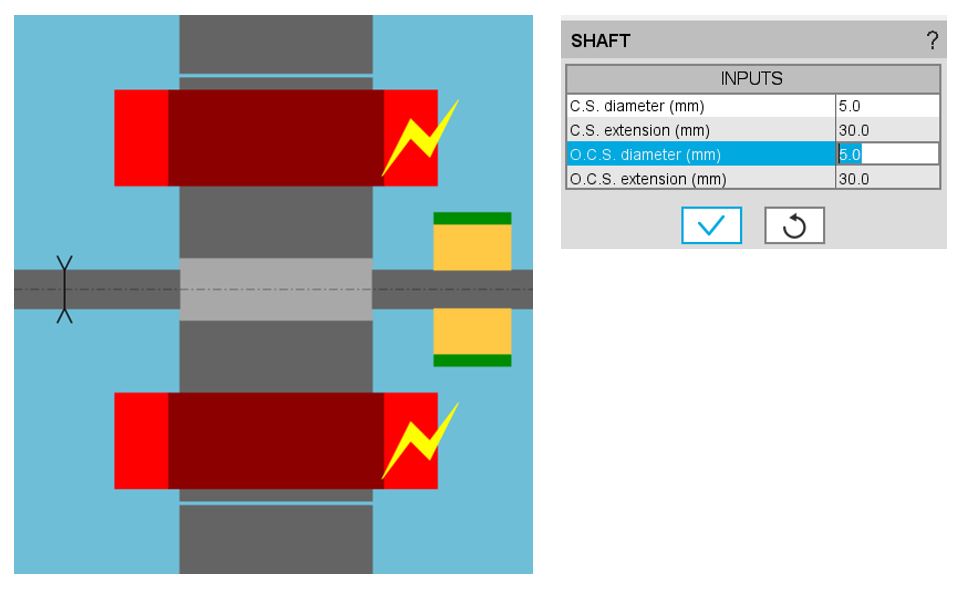

Dimensions are illustrated with arrows Connection side (C.S.) is identified by yellow lightning

Shaft - Inputs

Label Symbol Tooltip, note, formula
C.S. diameter D1 Connection side end-shaft diameter.
C.S. extension L1 Connection side end-shaft extension.
O.C.S. diameter D2 Opposite connection side end-shaft diameter.
O.C.S. extension L2 Opposite connection side end-shaft extension.
