Lamination
Overview
The tools available in the lamination tab allow in defining the outer shape of the lamination.
Three choices are available to define the lamination topology: Circular or Square.
By default, the outer shape of the lamination is defined by considering the outer diameter of the stator (defined in structural data).
In that case outer shape of lamination is circular without extensions. Outer dimensions of lamination are indicated in general data (structural data part). See illustration below.
|

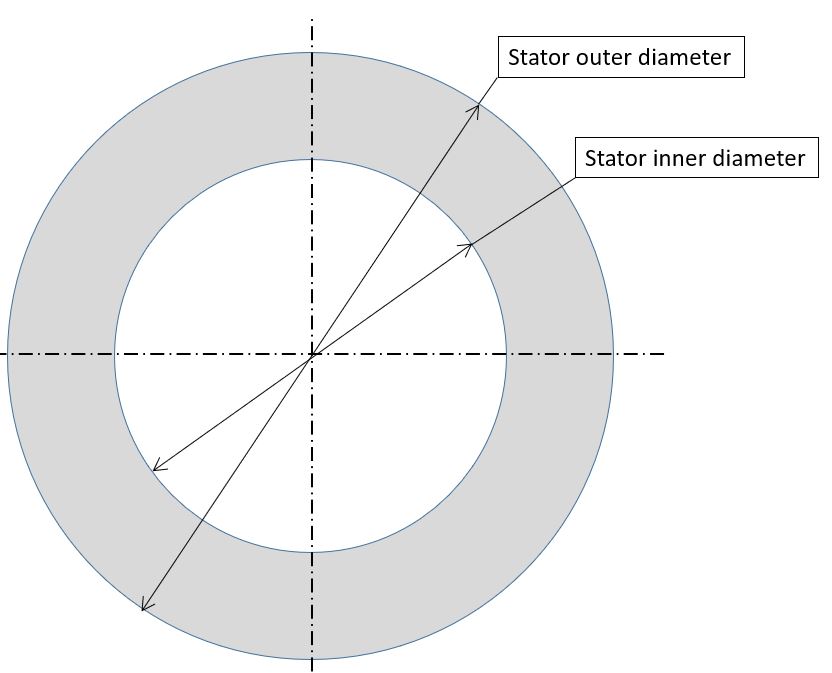

Original structural data of the stator: Outer and inner stator diameters |
Circular shape lamination
|

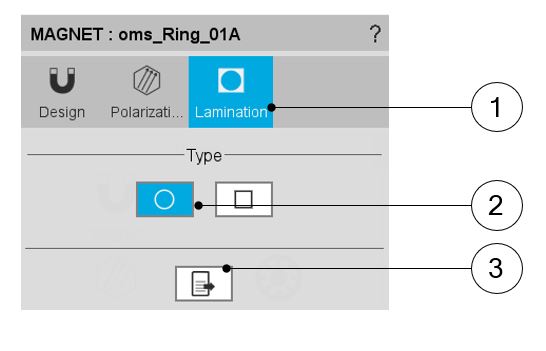

1 | Choice of lamination tab |
2 | Choice of a circular shape lamination | |
3 | Icon to export lamination data into *.txt or *.xlsx files. |
Square shape lamination
Main inputs
|

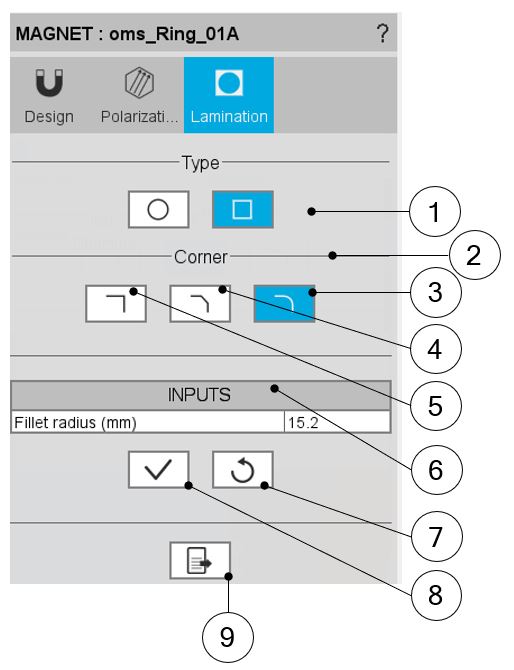

1 | Choice of a square shape lamination. |
2 | Corner type available (Right, Chamfer, Fillet). | |
3 | Button to select “fillet” type corner. | |
4 | Button to select “chamfer” type corner. | |
5 | Button to select “right” type corner. | |
6 | User input parameters (for the corner types that neet it | |
7 | Button to restore default input values. | |
8 | Button to apply inputs. Pressing the enter key twice applies inputs too. |
|
9 | Icon to export lamination data into *.txt or *.xlsx files. | |
Dialog box to define the square shape lamination |
Description of the different kinds of square shape lamination available
|
|

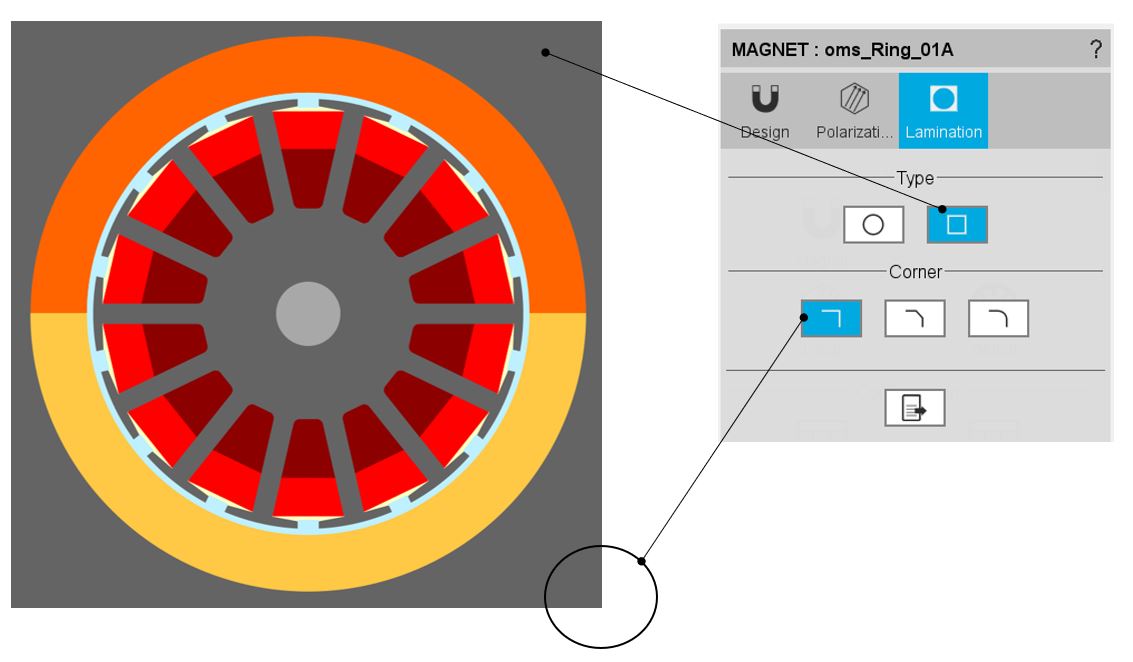

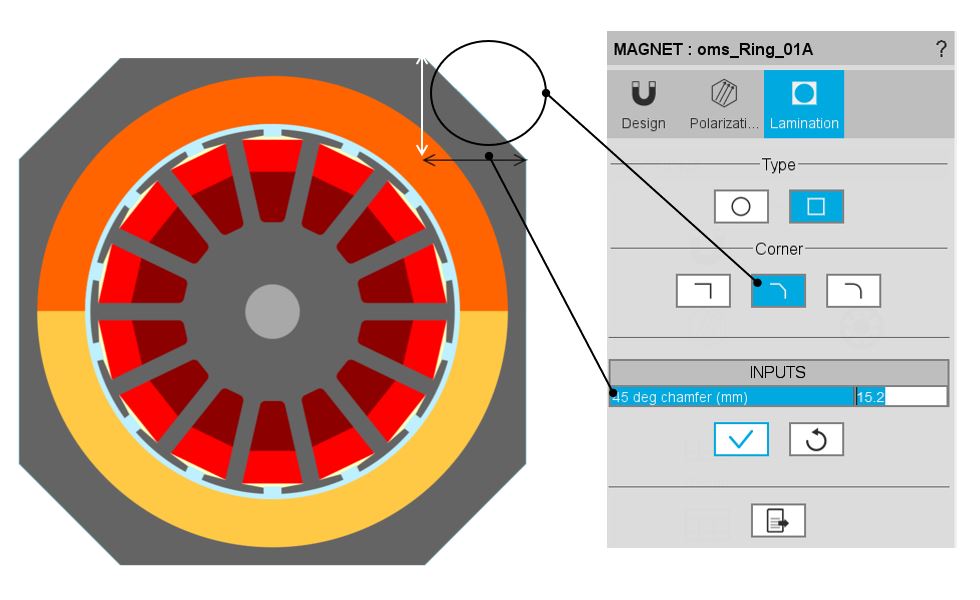

Square shape lamination with right corner | Square shape lamination with chamfer corner |
|
|

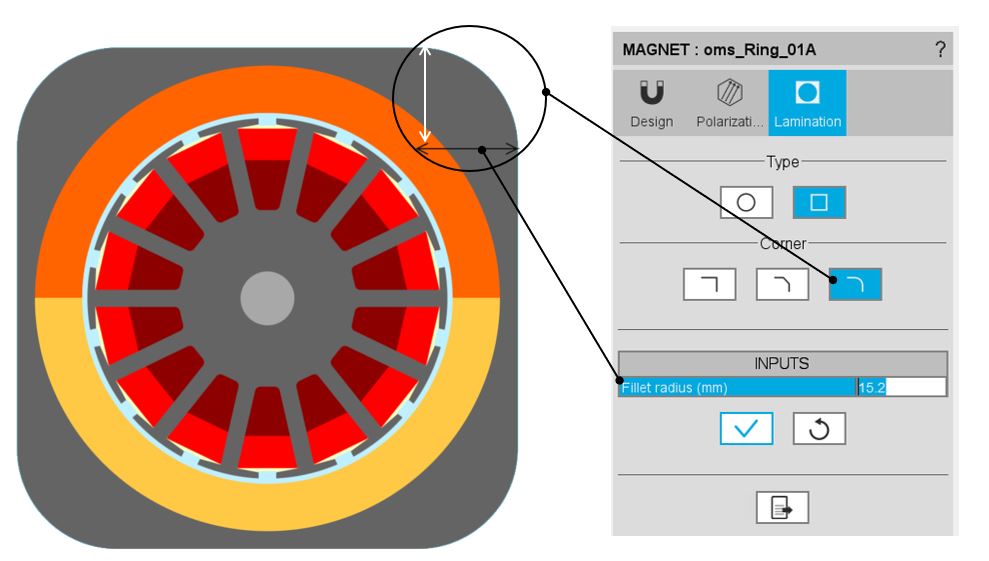

Square shape lamination with fillet corner Setting of the lamination fillet radius |

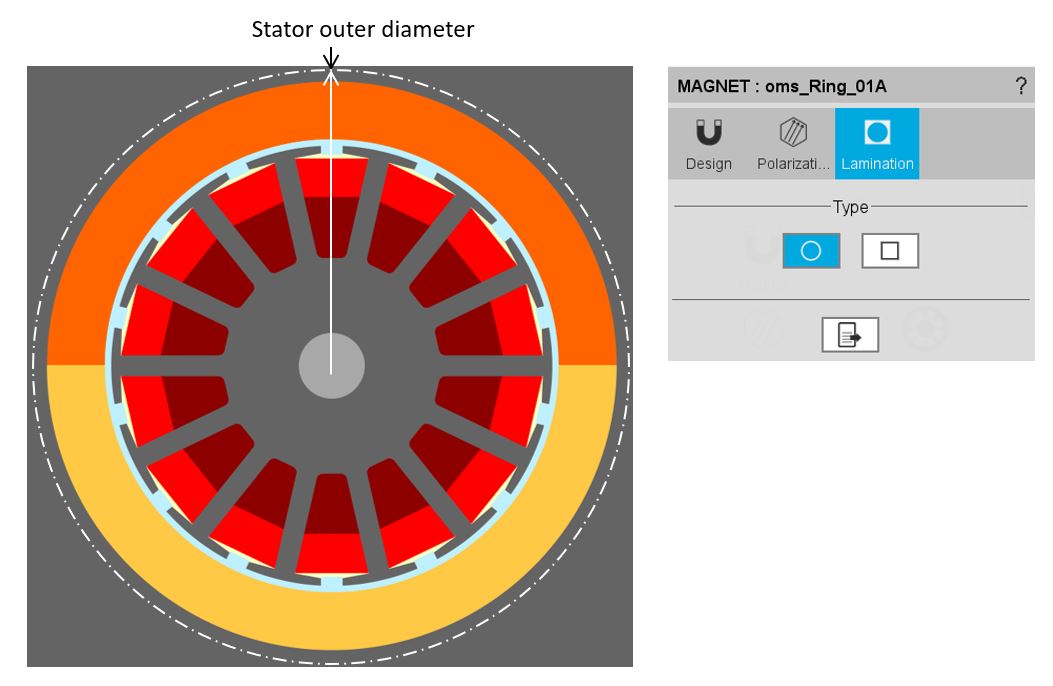

Square shape lamination with right corner See the link with stator outer diameter |
