MAGNET


MAGNET design area

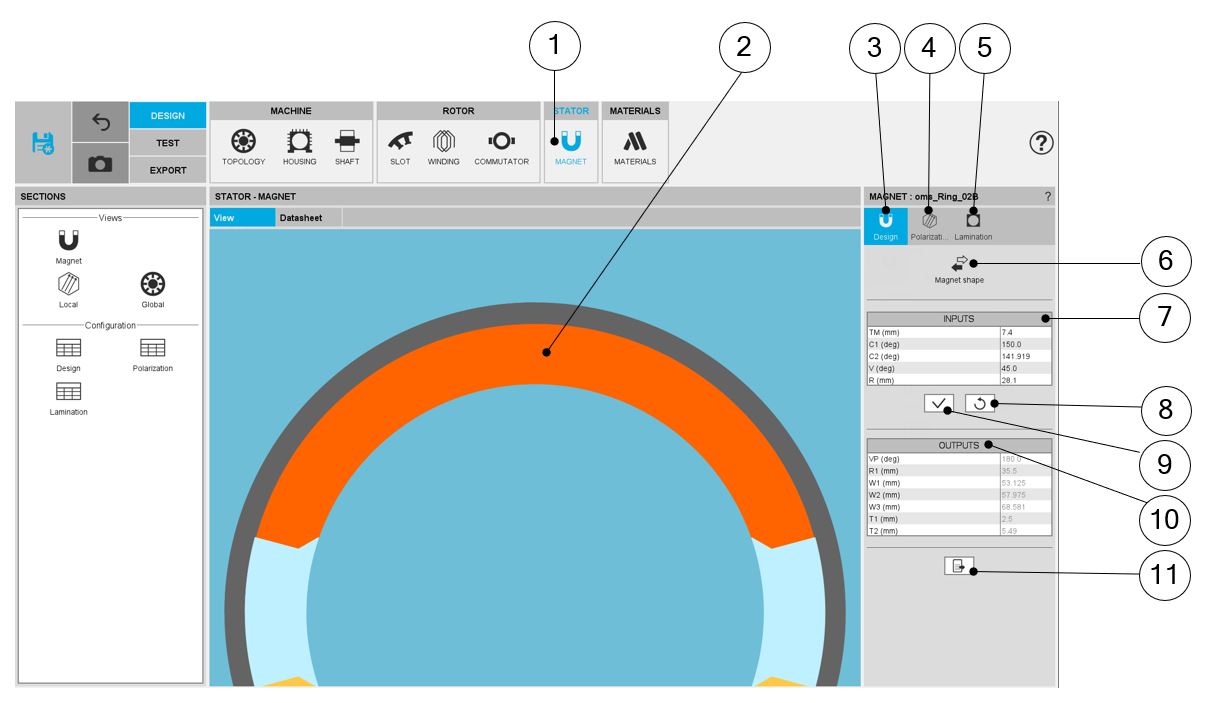

1	Selection of the STATOR subset: MAGNET panel (Click on the icon MAGNET)
2	Visualization of the motor radial view to view the magnet topology and dimensions.
3	DESIGN tab indicates the tools to define the magnet topology and parameter values Note: By default, DESIGN tab is selected
4	POLARIZATION tab contains the tools to define the magnets polarization
5	LAMINATION tab contains the tools to define the lamination geometry
6	"Magnet shape" button allows accessing the magnet libraries to change the magnet topology. See additional information below.
7	User input parameter fields to enter the values.
8	Button to restore default input values.
9	Button to apply inputs. Pressing the “enter key” twice applies inputs too.
10	Output parameters (read only data) to complete the description of the topology.
11	Icon to export magnet data into .txt or .xlsx files.

MAGNET design area

1

Selection of the STATOR subset: MAGNET panel (Click on the icon MAGNET)

2

Visualization of the motor radial view to view the magnet topology and dimensions.

3

DESIGN tab indicates the tools to define the magnet topology and parameter values

Note: By default, DESIGN tab is selected

4

POLARIZATION tab contains the tools to define the magnets polarization

5

LAMINATION tab contains the tools to define the lamination geometry

6

"Magnet shape" button allows accessing the magnet libraries to change the magnet topology. See additional information below.

7

User input parameter fields to enter the values.

8

Button to restore default input values.

9

Button to apply inputs. Pressing the “enter key” twice applies inputs too.

10

Output parameters (read only data) to complete the description of the topology.

11

Icon to export magnet data into *.txt or *.xlsx files.
