Local Settings

Adjust the display settings for the current project.

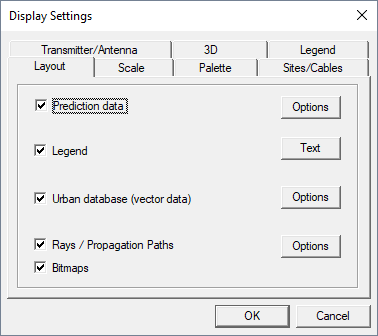

Display adjustments for the current project can be specified with the local settings dialog, which can be reached via Settings > Local Settings (Display of Data) or the toolbar icon .
