Potting

Definitions

“Potting” section is available only when the housing is defined with a frame (circular or square shape).

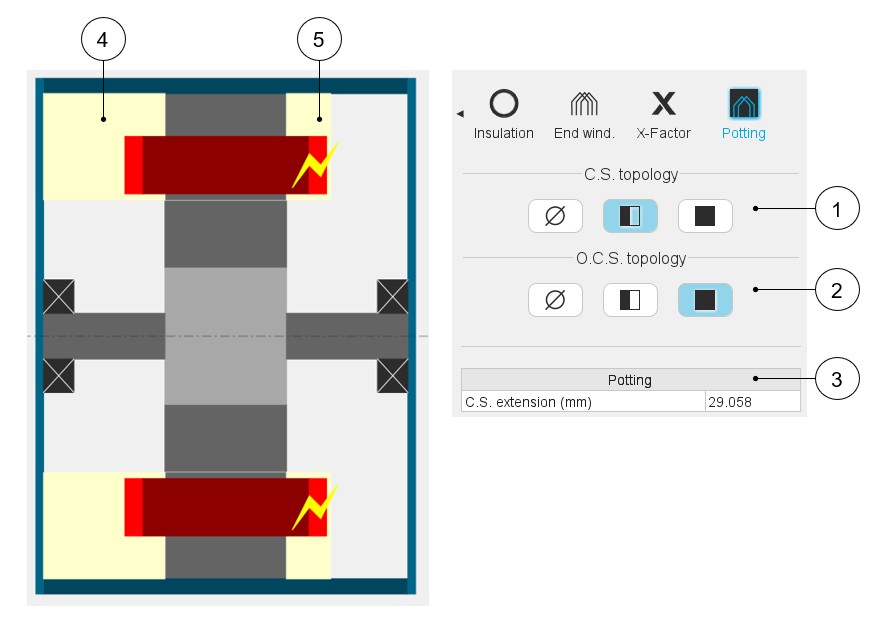

Table 1. Definition of the topology and dimensions of the potting around the end-winding

1	Button to define a potting with only radial contact (at connection side in this example)
2	Button to define a potting with radial and axial contacts (at opposite connection side in this example).
3	Dimensions for defining the selected potting
4	Extension of potting with both contact axial and radial
5	Extension of potting with radial contact only
