Viewing the Far Field Results (3D)

View the far field results in the 3D view.

  1. Select the 3D view window.
  2. Add the far field result to the 3D view.
    1. On the Home tab, in the Add results group, click the  Far field icon. From the drop-down list, select FarField1.
  3. Hide the near field result still displayed in the 3D view.
    1. In the result palette, on the Traces panel, click the eye icon next to NearField1.
      Figure 1. An open eye icon indicates that the trace is shown.


      Figure 2. A closed eye icon indicates that the trace is hidden.


  4. Add an annotation to the far field.
    1. Add an annotation to the desired location by pressing Ctrl+Shift+left click.
  5. View the fields in dB.
    1. On the result palette, in the Quantity panel, select the dB check box.
  6. Change the size of the far field compared to the geometry.
    1. On the 3D View contextual tabs set, on the Result tab, in the Rendering group, click the  Size icon. From the drop-down list, select Custom.
    2. On the Specify dialog, set the size as 70%.

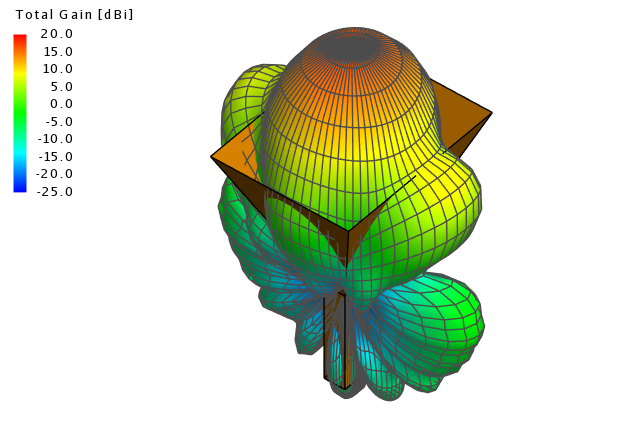

      Figure 3. The 3D far field result.


    3. Click OK to specify the size of the far field and to close the dialog.
