Viewing the Far Field Results (2D)

View the far field results on a polar graph.

Note: Since a full 3D set of data was requested for this example, 2D cuts can be extracted.
  1. Create a new polar graph.
    1. On the Home tab, in the Create new display group, click the  Polar icon.
  2. Add the far field result to the polar graph.
    1. On the Home tab, in the Add results group, click the  Far Field Source icon. From the drop-down list, select FarField1.
  3. View the far field gain plotted in the YZ plane.
    1. On the result palette, in the Slice panel, make the following changes:
      • From the Independent axis (Angular) drop-down list, select Theta (wrapped).
      • From the Frequency drop-down list, select 1.645 GHz.
      • From the Phi drop-down list, select 90 deg (wrapped).
  4. On the result palette, in quantity panel panel, select the dB check box.

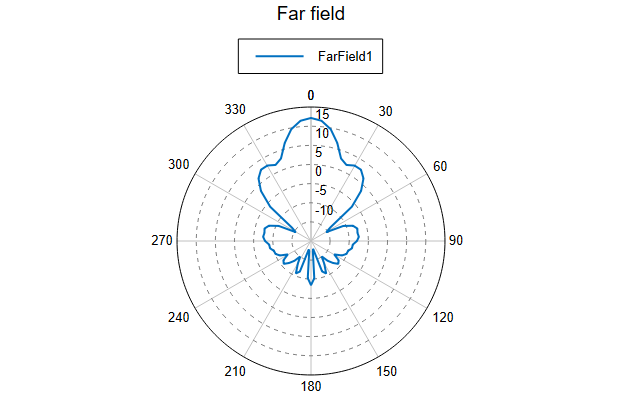

    Figure 1. The far field results on a polar graph.
