Monopole Antenna on a Finite Ground Plane

Calculate the radiation pattern for a wire monopole antenna on a finite ground plane. The ground plane is modelled as a circular PEC ground plane.

The circumference of the circular ground is 3 wavelengths at 75 MHz. The wire radius of the monopole antenna is 1 mm.

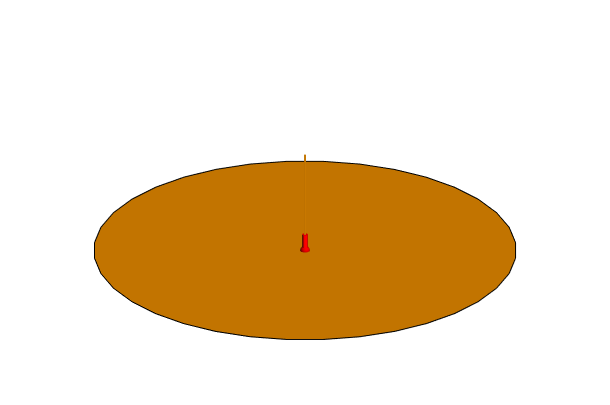

Figure 1. A 3D view of the monopole on a finite circular ground.

Tip: Find the completed model in the application macro library¹.

¹ The application macro library is located on the Home tab, in the Scripting group. Click the Application Macro icon and from the drop-down list, select Example Guide.
