WINDING
Winding - Overview
Please refer to the user help guide dedicated to the “Windings” design for more detailed user information.
 |
|

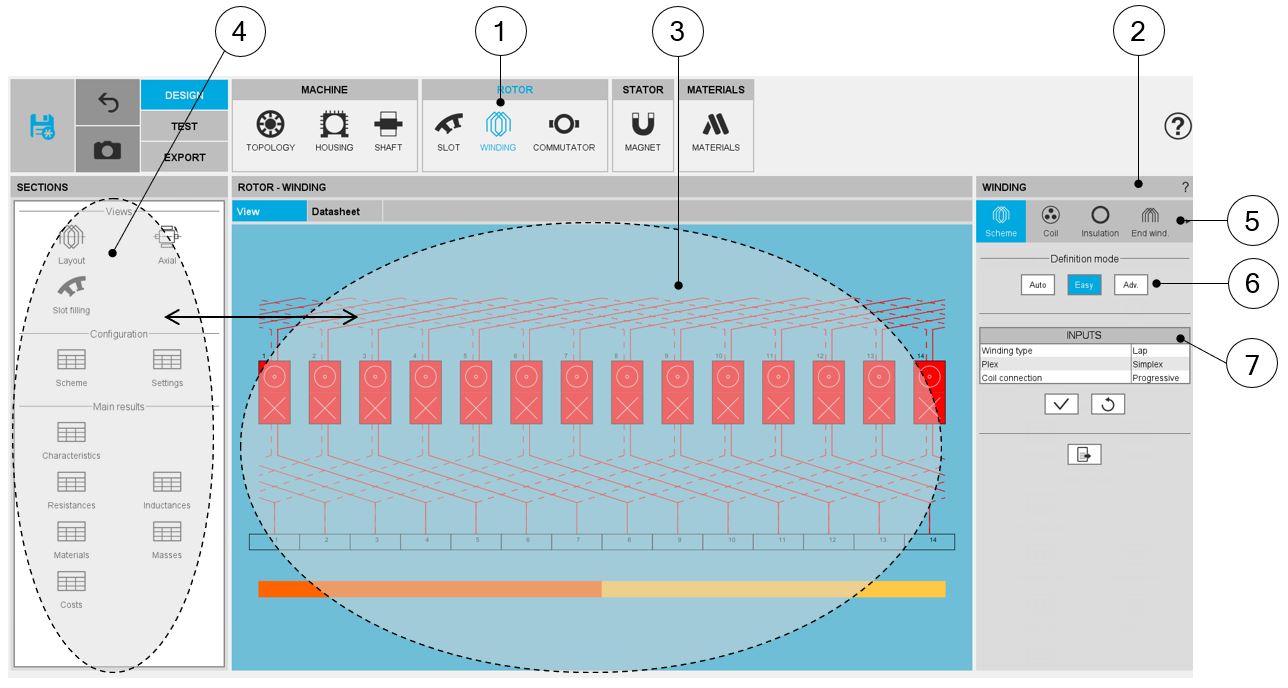

| WINDING design area - Overview | |
| 1 | Selection of the ROTOR subset: WINDING panel (Click on the icon WINDING) |
| 2 |
Once a winding is defined, corresponding results are automatically displayed in form of a winding report. Visualization of the winding characteristics (inputs, settings, materials, etc) is possible. Scrollbars allow browsing the whole document rapidly and having an overview of all the results. Using scrollbars, complete data can be accessed and visualized. |
| 3 | Shortcuts for displaying the corresponding chapter of the winding report. |
| 4 | Winding settings allow describing the winding architecture. |
| 5 | Winding settings allow describing the winding: |
| 6 | Three modes of winding allow to define and build the winding architecture. |
| Auto | Automatic mode used by default. |
| Easy | Easy mode, to choose solution among those FluxMotor® proposes. |
| Adv. | Advanced mode, to allow the user to define any specific input parameters. |
| 7 | User input parameter fields to enter the values according to the considered mode. |
