| COMMUTATOR design area –Overview |
| 1 |

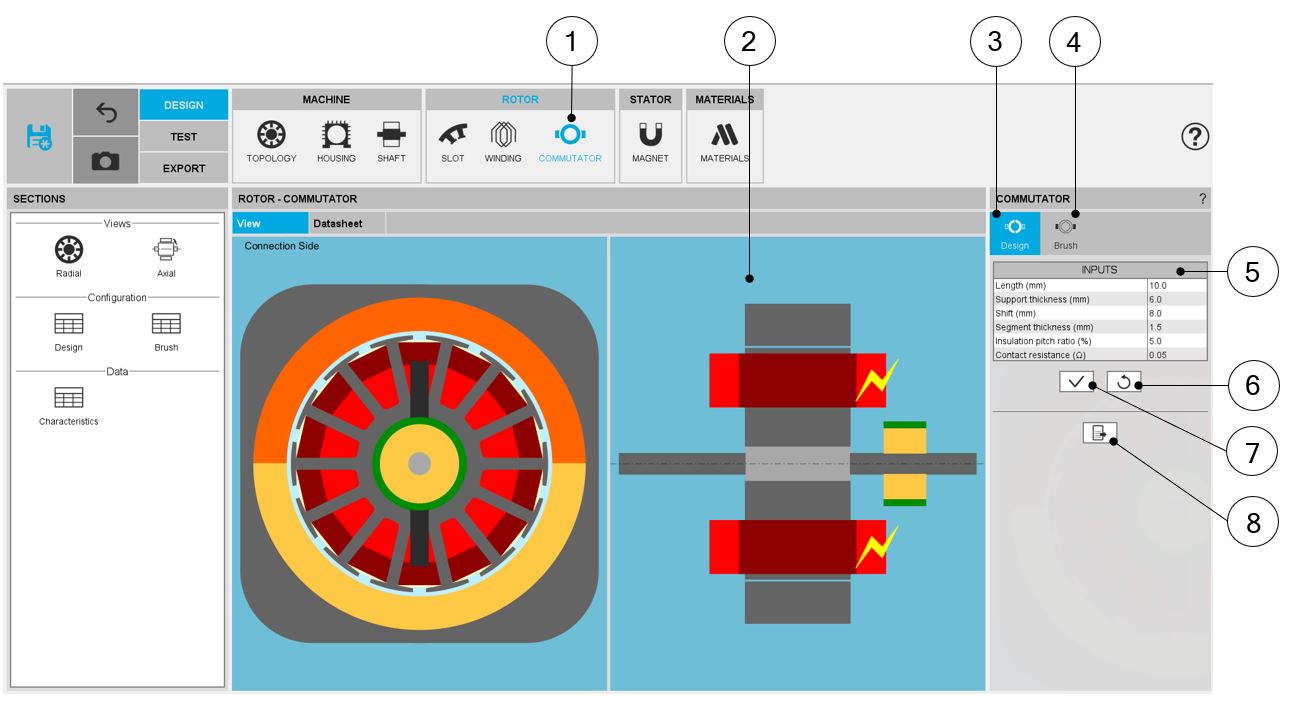

Selection of the ROTOR subset: COMMUTATOR panel (Click on the
icon COMMUTATOR) |
| 2 |
Visualization of the motor axial and radial views to visualize
the commutator and the brushes |
| 3 |
Commutator design tab to stablish global parameters, both
geometrical and electrical |
| 4 |
Brush design tab to introduce brush related parameters |
| 5 |
Commutator-Design input data to be defined |
| 6 |
Button to restore default input values |
| 7 |
Button to apply inputs. Pressing the enter key twice applies
inputs too. |
| 8 |
Icon to export shaft data into *.txt or *.xlsx files. |
