Paths
1. Default Path Preferences
 |
|

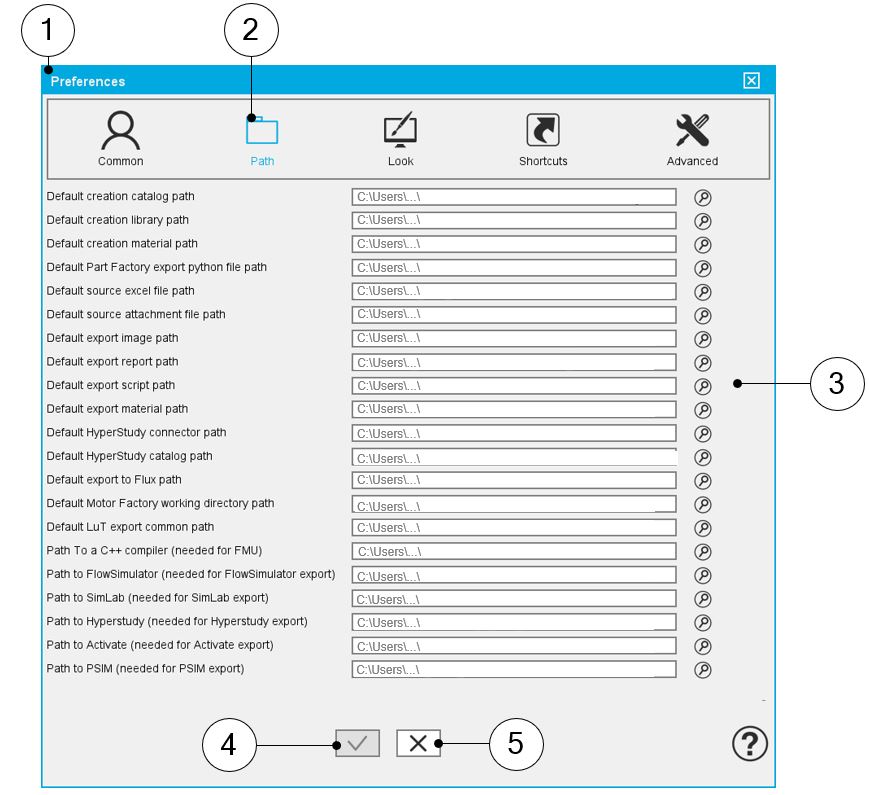

| Path Preferences Screen | |
| 1 | The Preferences dialog box is opened from the supervisor. |
| 2 | Second tab is Path Preferences. |
| 3 | Define default paths for application by browsing the folders. |
| 4 | Button to apply changes and close the Preferences dialog box. |
| 5 | Button to close the Preferences window dialog box without applying the changes. |
2. Information about the "Access path of the C/C++ Compiler"
 |
|
| FluxMotor / Supervisor / User’s preferences / Location of the C/C++ Compiler | |
| 1 | The Preferences dialog box is opened from the supervisor. |
| 2 | Second tab is Path Preferences. |
| 3 | Define the location of the C/C++ Compiler on the computer |
Here is below a list of files to select in the installation directory (path) according to the Visual Studio version that you installed:
| Visual Studio 2019, Community | C:\Program Files (x86)\Microsoft Visual Studio\2019\Community\VC\Auxiliary\Build\vcvarsall.bat |
| Visual Studio 2019, Professional | C:\Program Files (x86)\Microsoft Visual Studio\2019\Professional\VC\Auxiliary\Build\vcvarsall.bat |
| Visual Studio 2019, Enterprise | C:\Program Files (x86)\Microsoft Visual Studio\2019\Enterprise\VC\Auxiliary\Build\vcvarsall.bat |
| Visual Studio 2017, Community | C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\VC\Auxiliary\Build\vcvarsall.bat |
| Visual Studio 2017, Professional | C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\VC\Auxiliary\Build\vcvarsall.bat |
| Visual Studio 2017, Enterprise | C:\Program Files (x86)\Microsoft Visual Studio\2017\Enterprise\VC\Auxiliary\Build\vcvarsall.bat |
| Microsoft® Visual Studio C++ 2015 Express | C:\Program Files (x86)\Microsoft Visual Studio\14.0\VC\Build\vcvarsall.bat |
| Microsoft® Visual Studio C++ 2015 Community | C:\Program Files (x86)\Microsoft Visual Studio\14.0\VC\Build\vcvarsall.bat |
| Microsoft® Visual Studio C++ 2015 Professional | C:\Program Files (x86)\Microsoft Visual Studio\14.0\VC\Build\vcvarsall.bat |
| Microsoft® Visual Studio 2019, Build Tools | C:\Program Files (x86)\Microsoft Visual Studio\2019\BuildTools\VC\Auxiliary\Build\vcvarsall.bat |
| Microsoft® Visual Studio 2017, Build Tools | C:\Program Files (x86)\Microsoft Visual Studio\2017\BuildTools\VC\Auxiliary\Build\vcvarsall.bat |
Note: The runnable command is detected if you installed Visual
Studio before or if you set the preference to an empty value and reopen the
preferences.
Once the C/C++ Compiler is installed on the computer, its access path must be specified in the user’s preferences.
Note: When opening FluxMotor, if a C/C++ Compiler is already
installed on the computer, the corresponding install path is automatically
written in the user’s preferences.
