Add Vegetation to Urban Database

Vegetation objects define areas within an urban database that have a higher attenuation than the free space but do not have the characteristics of buildings like reflection or diffraction.

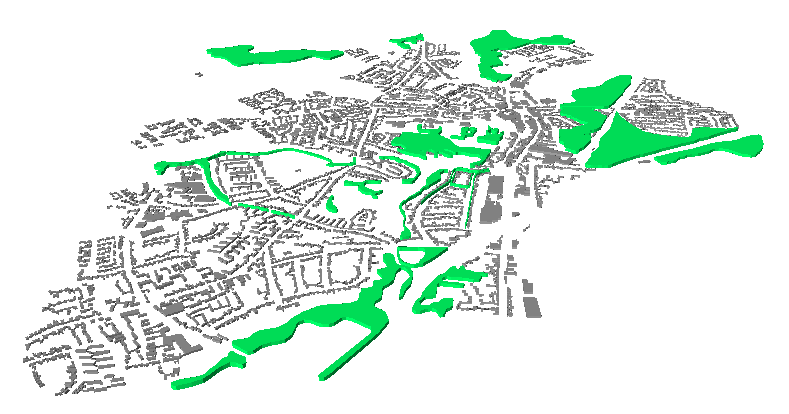

Figure 1. Urban database with vegetation objects.
